Toyota Landcruiser 300 Series Additional WCAC/LTR and Transmission Cooler Kit
PRODUCT DETAILS
- Varied core combinations using 26, 32, 42 & 55mm tubes
- Revolutionary fin pitch from 10-22FPI and louver angles
- R-fin upgrade options
- World class TIG welding by our passionate fabricators
- State of the art-controlled atmosphere brazing process
- All items CAD designed to meet ISO9001 International standards for repeatability
- Race and street proven performance backed by comprehensive wind tunnel testing
- Pressure tested and guaranteed
- 1 Year manufactured warranty
- 100% Australian made
PWR’s Heat Exchanger/Transmission Cooler Kit delivers exceptional cooling performance, seamless installation, and striking design—hallmarks of the quality and engineering excellence for which PWR is renowned.
The 300 Series Land Cruiser is known to experience significant power reduction and heat soak under demanding conditions, particularly when towing in high ambient temperatures.
This issue stems from the factory-installed, side-mounted heat exchangers located behind the front bumper. Due to their limited exposure to airflow, especially in hot climates, they struggle to effectively dissipate heat. As a result, coolant entering the water-to-air intercooler remains too warm, leading to elevated intake air temperatures and a noticeable drop in engine performance.

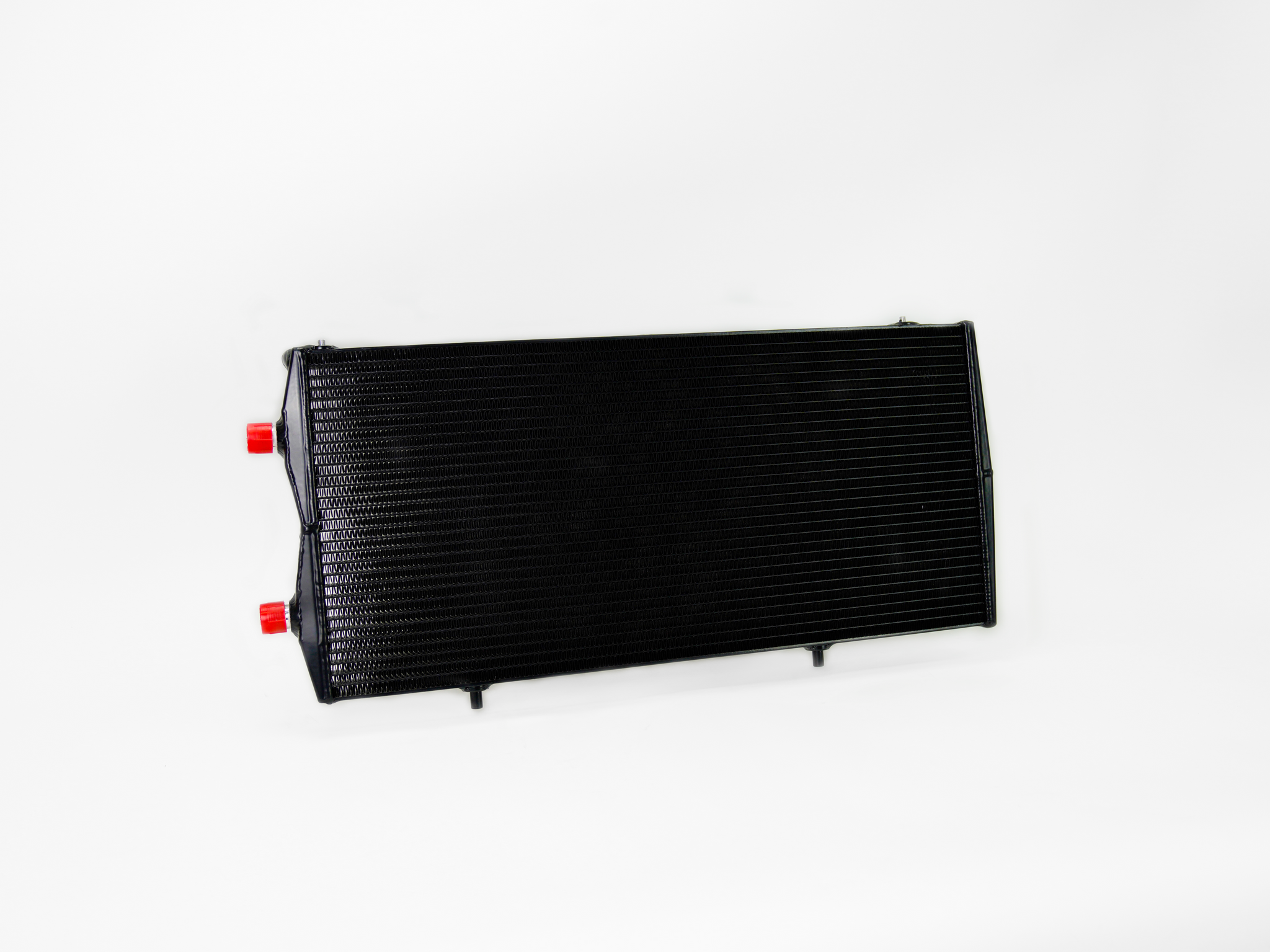

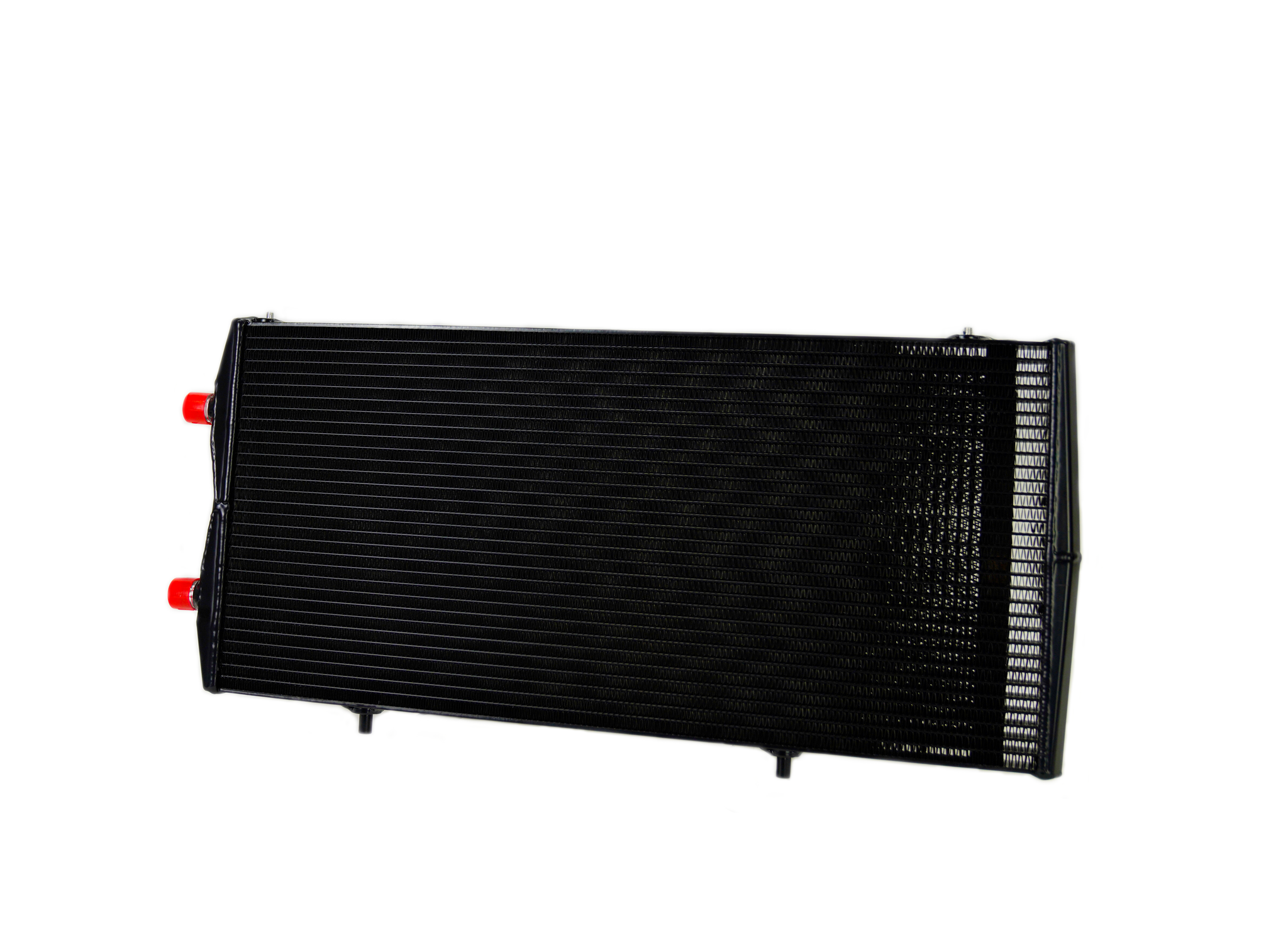

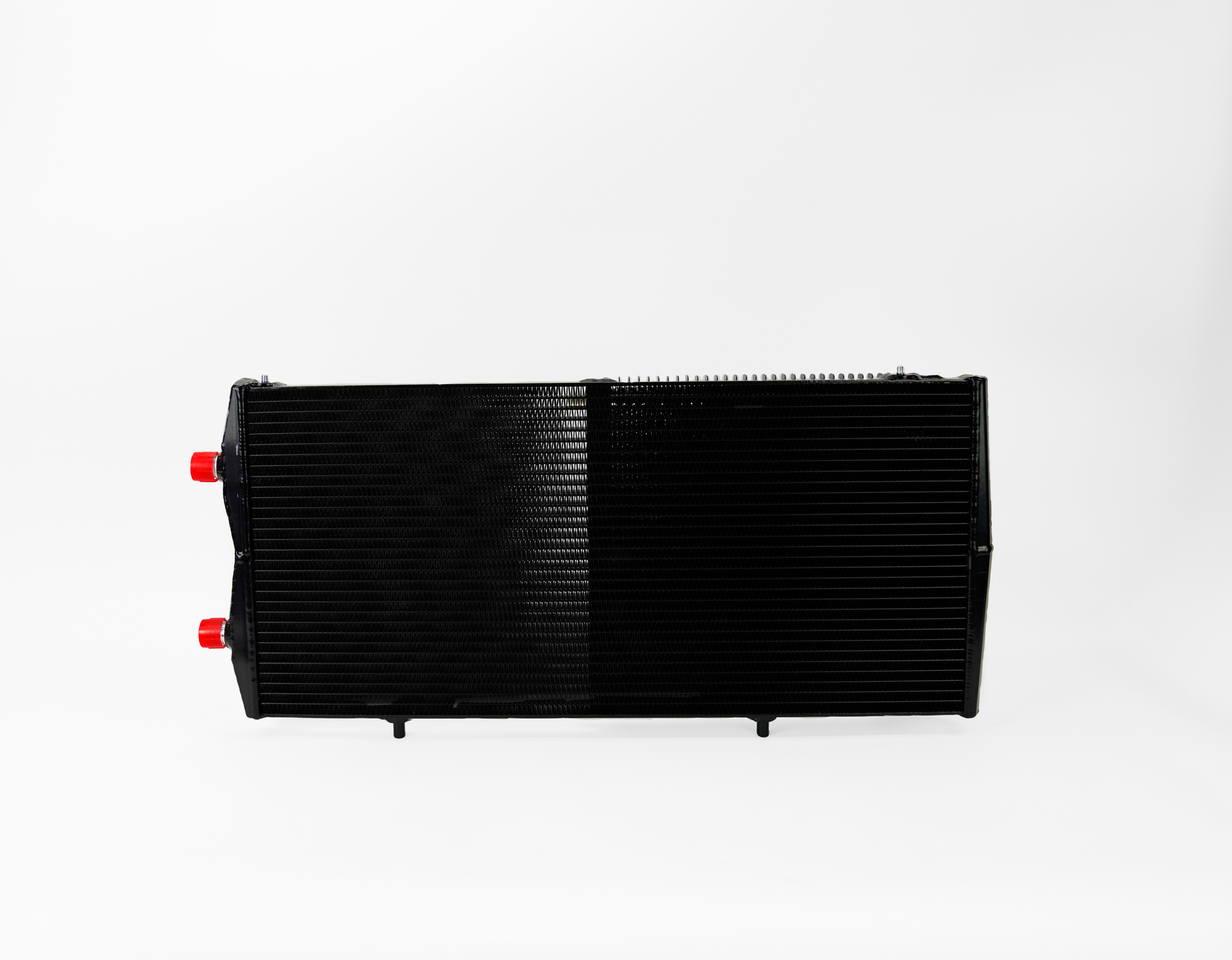

SPECIFICATIONS
- Aluminium
- Black Powder coated
- 576 x 277 x 26mm
- Rolled Dimple Tube & 7.00mm R-fin
- -10 AN outlet’s on LTR
- Easy Fitment/No Cutting Required

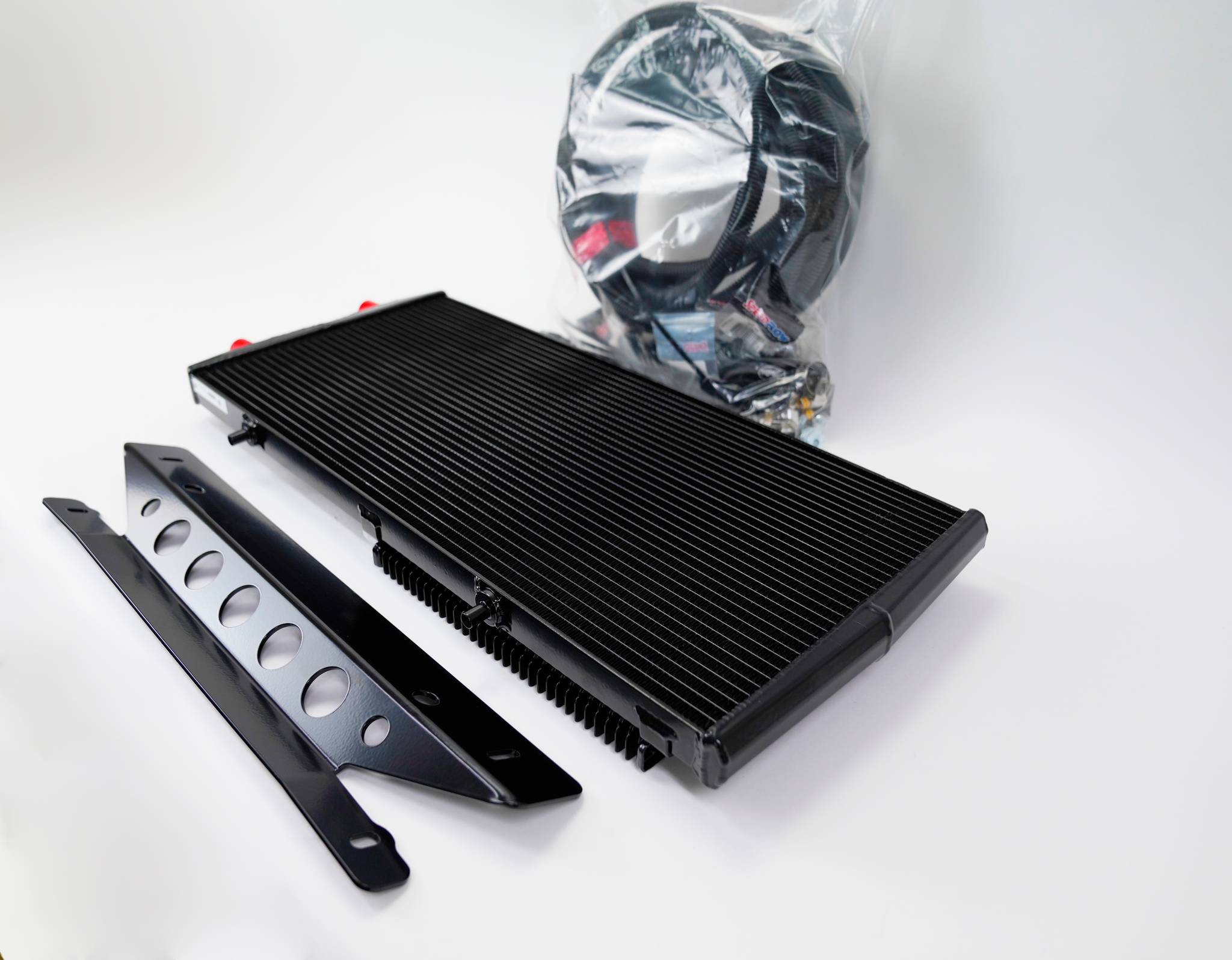

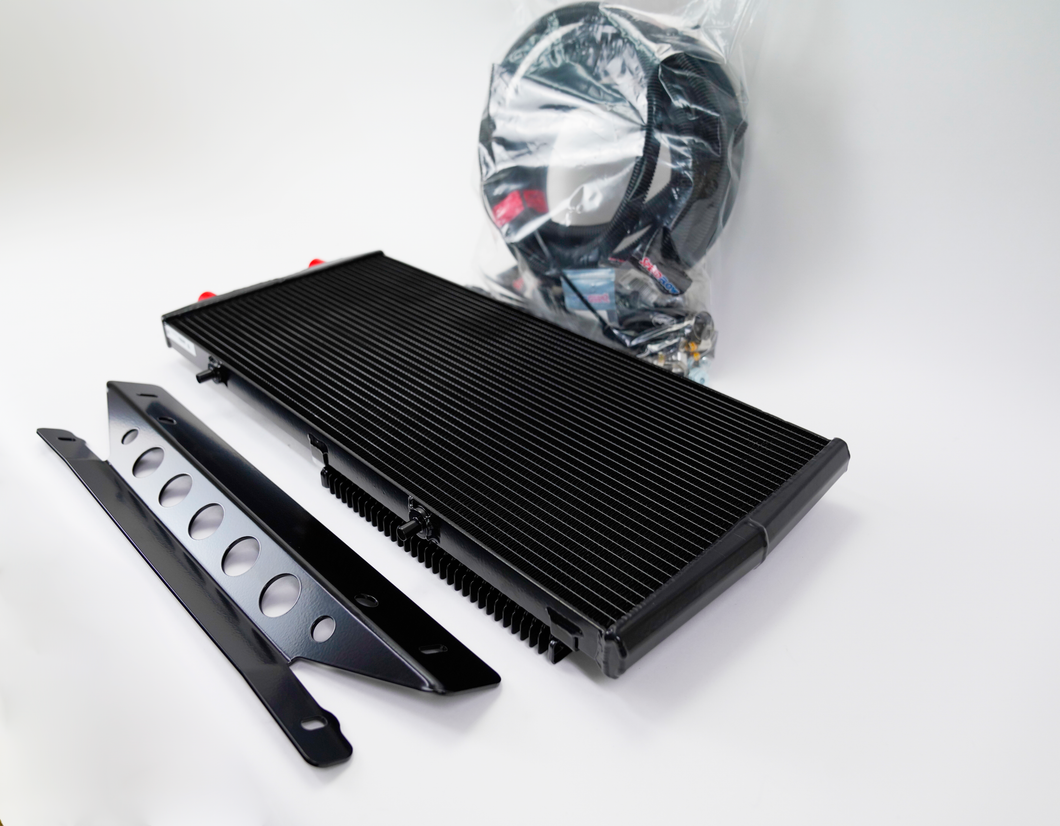

WHAT'S INCLUDED
- Rolled Dimple Tube & Fin Heat Exchanger
- PWO0528B Transmission cooler
- Sheetmetal Bracket Kit
- Hose/Accessory/Mounting Kit
- Fitting Instructions
COMPATIBILITY
- Toyota Landcruiser 300 Series- all variants, 3.3L Diesel V6 Twin Turbo 2021- 09/2024
PWR Heat Exchanger radiators or LTR (low temperature radiator) are commonly used to intercool in-manifold water-cooled supercharger and turbocharger systems with dedicated electric water pumps circulating the coolant. They typically feature wide single rows of tube with either standard profile or close mesh fin configurations for maximum flow & cooling efficiency tailored to street or track conditions. Barbed fittings or male threaded Dash Fittings are available, and all manufactured by hand in our state-of-the-art facilities on the Gold Coast. Each PWR heat exchanger radiator will deliver the highest levels of quality, consistent durability, strength, and performance exceeding the highest levels of customer expectation.
