TAG Heavy Duty Towbar & Direct Fit Wiring for Isuzu D-MAX (10/2020 - on), Mazda BT-50 (07/2020 - on)
TAG Heavy Duty Towbar & Direct Fit Wiring for Isuzu D-MAX (10/2020 - on), Mazda BT-50 (07/2020 - on)
  • Load image into Gallery viewer, TAG Heavy Duty Towbar & Direct Fit Wiring for Isuzu D-MAX (10/2020 - on), Mazda BT-50 (07/2020 - on)
  • Load image into Gallery viewer, TAG Heavy Duty Towbar & Direct Fit Wiring for Isuzu D-MAX (10/2020 - on), Mazda BT-50 (07/2020 - on)

TAG Heavy Duty Towbar & Direct Fit Wiring for Isuzu D-MAX (10/2020 - on), Mazda BT-50 (07/2020 - on)

$893.75
$893.75
Sold out

Tax included. Shipping calculated at checkout.

Basic 1-Piece Towbar and direct fit wiring to suit all models with or without a rear step.

This Kit Includes:

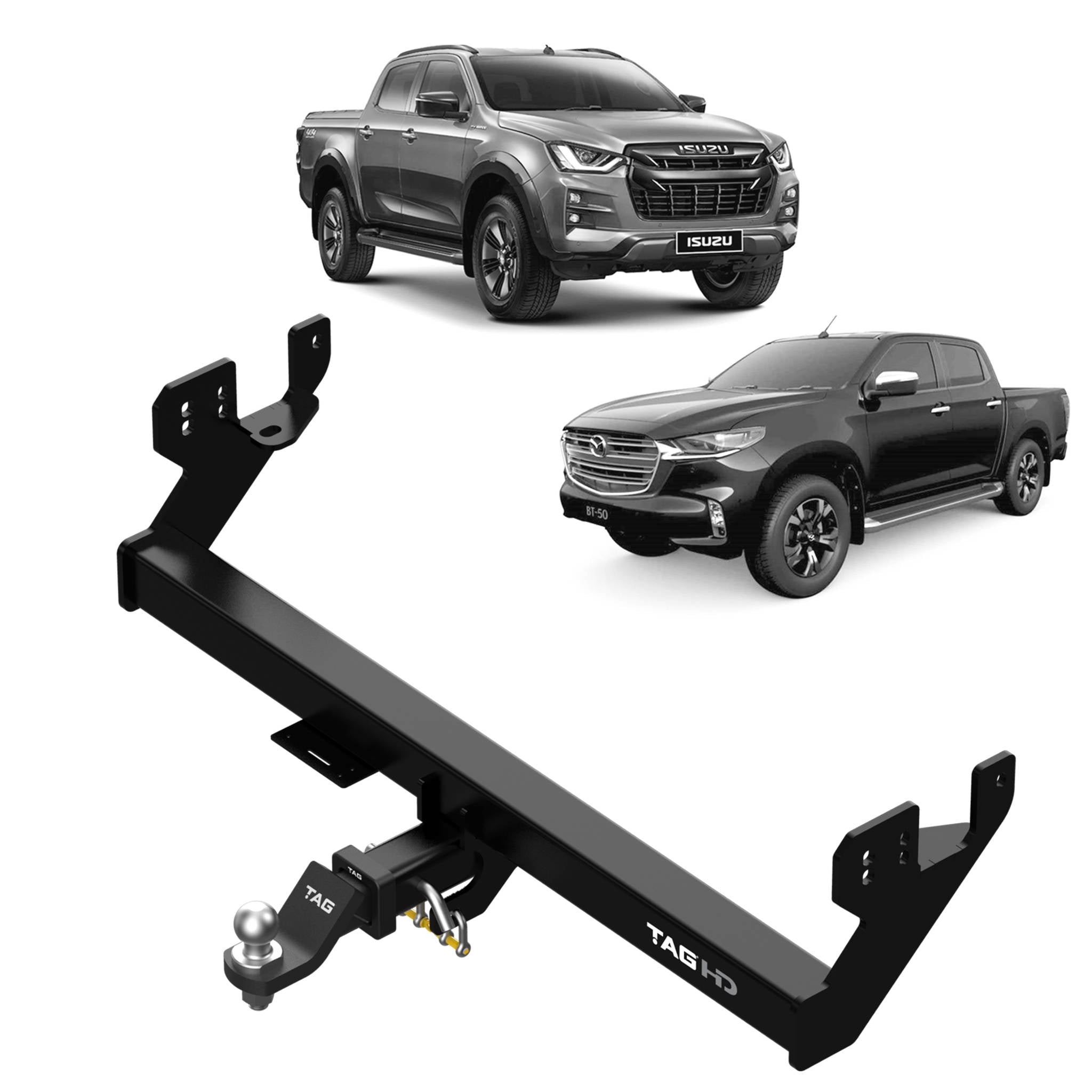

  • TAG Heavy Duty Towbar

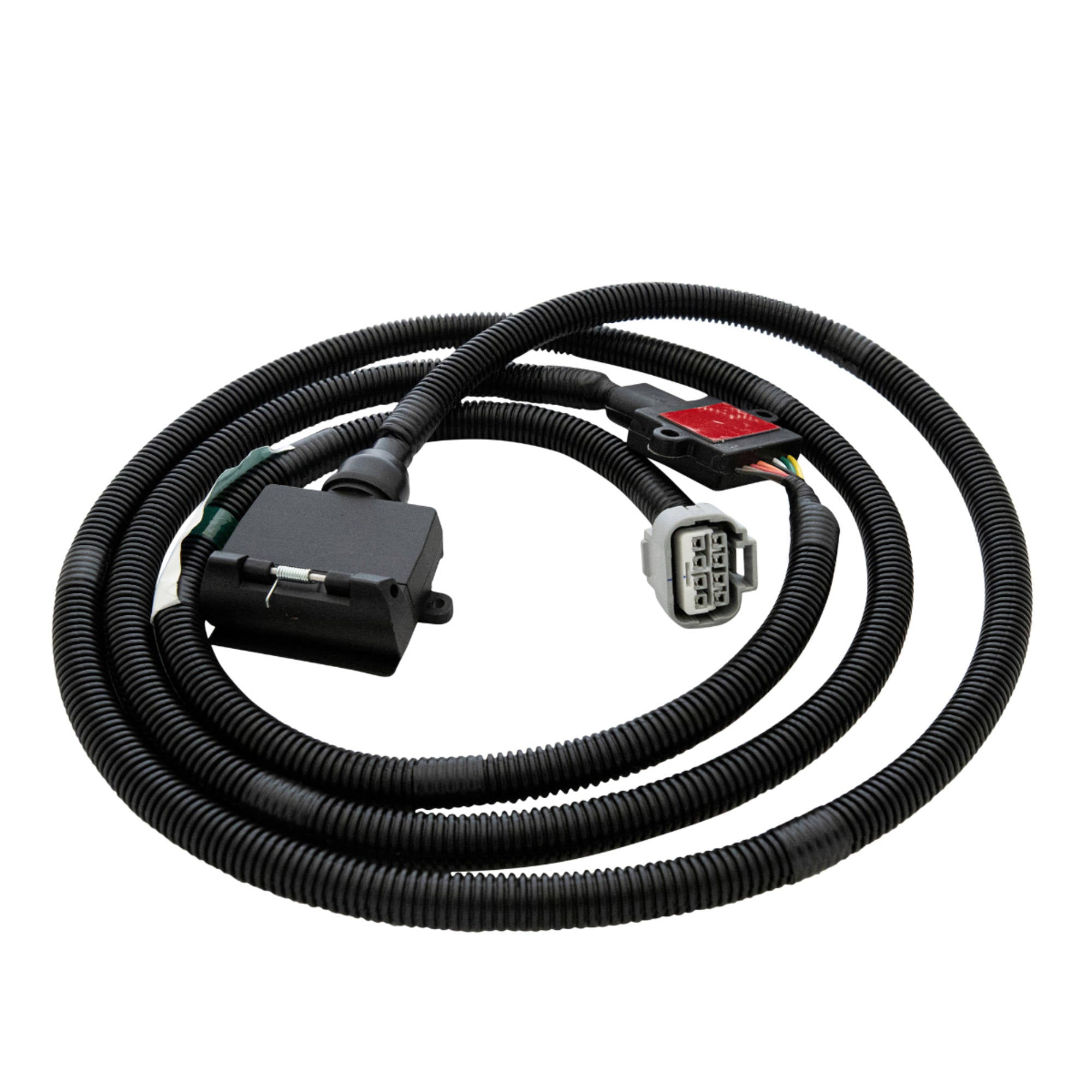

  • TAG Direct Fit Wiring Harness with 7 Pin Flat Socket - Vehicle Side

TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • Durable Powder Coated Finish

  • TAG Limited Lifetime Warranty

  • Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles

Designed to fit on cab chassis and styleside models.

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications
  • Diagnostic Coding: Not Required
  • Fitting Time Approx: 0.5 hr (UNT351)
  • Fitting Time Approx: 1 (T4H771)
  • Reverse Sensor Cut Off: Automatic
  • Wiring Option: Direct Fit ECU
  • Towbar Class: Heavy Duty
  • Tow Bar Capacity: 3500 kg
  • Ball Weight: 350 kg
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4045
  • Coating: Enamel Immersion Dipped
  • Bumper Removed During Fitment: No
  • Bumper Cut Out Required: No
  • Exposure: Exposed
Mazda BT-50 (07/2020 - on)
Make Model From To Body Series Engine Variant Drivetrain
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic/Manual 4WD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic/Manual 4WD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic RWD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT Automatic RWD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT FREESTYLE Automatic/Manual 4WD
MAZDA BT-50 08/2020 - Cab Chassis B30B 4JJ3-TCX | 3.0L | Diesel XT FREESTYLE Automatic RWD
MAZDA BT-50 07/2020 - Cab Chassis TF 4JJ3-TCX | 3.0L | Diesel 4WD
MAZDA BT-50 07/2020 - Cab Chassis TF (TFS40JDR, TFS40JPR) 4JJ3-TCX | 3.0L | Diesel AWD
MAZDA BT-50 07/2020 - Cab Chassis TF (TFR40JDR, TFR40JPR) 4JJ3-TCX | 3.0L | Diesel RWD
MAZDA BT-50 07/2020 - Cab Chassis TF 4JJ3-TCX | 3.0L | Diesel RWD
Isuzu D-MAX (10/2020 - on), Mazda BT-50 (10/2020 - on)
Make Model From To Body Series Engine Variant Drivetrain
ISUZU D-MAX 10/2020 - Cab Chassis 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 10/2020 - Cab Chassis 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 10/2020 - Ute TFS40 4JJ3-TCX | 3.0L | Diesel CRD Automatic/Manual 4WD
ISUZU D-MAX 10/2020 - Ute TFR40 4JJ3-TCX | 3.0L | Diesel LS-U, SX Automatic RWD
ISUZU D-MAX 10/2020 - Ute TFS40 4JJ3-TCX | 3.0L | Diesel LS-U, SX SPACECAB Automatic/Manual 4WD
ISUZU D-MAX 10/2020 - Ute TFS40 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 10/2020 - Ute TFS 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual 4WD
ISUZU D-MAX 10/2020 - Ute TFR40 4JJ3-TCX | 3.0L | Diesel SX Automatic/Manual RWD
ISUZU D-MAX 10/2020 - Ute TFR40 4JJ3-TCX | 3.0L | Diesel SX SPACECAB Automatic RWD
ISUZU D-MAX 10/2020 - Ute TFR, TFS RZ4E-TC | 1.9L | Diesel DDI 4WD
ISUZU D-MAX 10/2020 - Ute TFR, TFS RZ4E-TC | 1.9L | Diesel DDI RWD
MAZDA BT-50 10/2020 - Cab Chassis TF RZ4E-TC | 1.9L | Diesel AWD
MAZDA BT-50 10/2020 - Cab Chassis TF RZ4E-TC | 1.9L | Diesel RWD
MAZDA BT-50 10/2020 - Cab Chassis 819C RZ4E-TC | 2.0L | Diesel XS Automatic RWD
MAZDA BT-50 10/2020 - Ute TF RZ4E-TC | 1.9L | Diesel 4WD
MAZDA BT-50 10/2020 - Ute 819C RZ4E-TC | 2.0L | Diesel XS Automatic 4WD
MAZDA BT-50 10/2020 - Ute B19C RZ4E-TC | 2.0L | Diesel XS Automatic RWD
MAZDA BT-50 10/2020 - Ute TF RZ4E-TC | 1.9L | Diesel 4x2 RWD
MAZDA BT-50 10/2020 - Ute B30B 4JJ3-TCX | 3.0L | Diesel GT, XT, XTR Automatic/Manual 4WD
MAZDA BT-50 10/2020 - Ute B30B 4JJ3-TCX | 3.0L | Diesel XT, XTR Automatic RWD
