TAG Heavy Duty Towbar and Direct Fit Wiring Harness for Suzuki Grand Vitara (09/2005 - 08/2018)
TAG Heavy Duty Towbar and Direct Fit Wiring Harness for Suzuki Grand Vitara (09/2005 - 08/2018)
TAG Heavy Duty Towbar and Direct Fit Wiring Harness for Suzuki Grand Vitara (09/2005 - 08/2018)
  • Load image into Gallery viewer, TAG Heavy Duty Towbar and Direct Fit Wiring Harness for Suzuki Grand Vitara (09/2005 - 08/2018)
  • Load image into Gallery viewer, TAG Heavy Duty Towbar and Direct Fit Wiring Harness for Suzuki Grand Vitara (09/2005 - 08/2018)
  • Load image into Gallery viewer, TAG Heavy Duty Towbar and Direct Fit Wiring Harness for Suzuki Grand Vitara (09/2005 - 08/2018)

TAG Heavy Duty Towbar and Direct Fit Wiring Harness for Suzuki Grand Vitara (09/2005 - 08/2018)

$762.89
$762.89
Sold out

Tax included. Shipping calculated at checkout.

This Kit Includes:

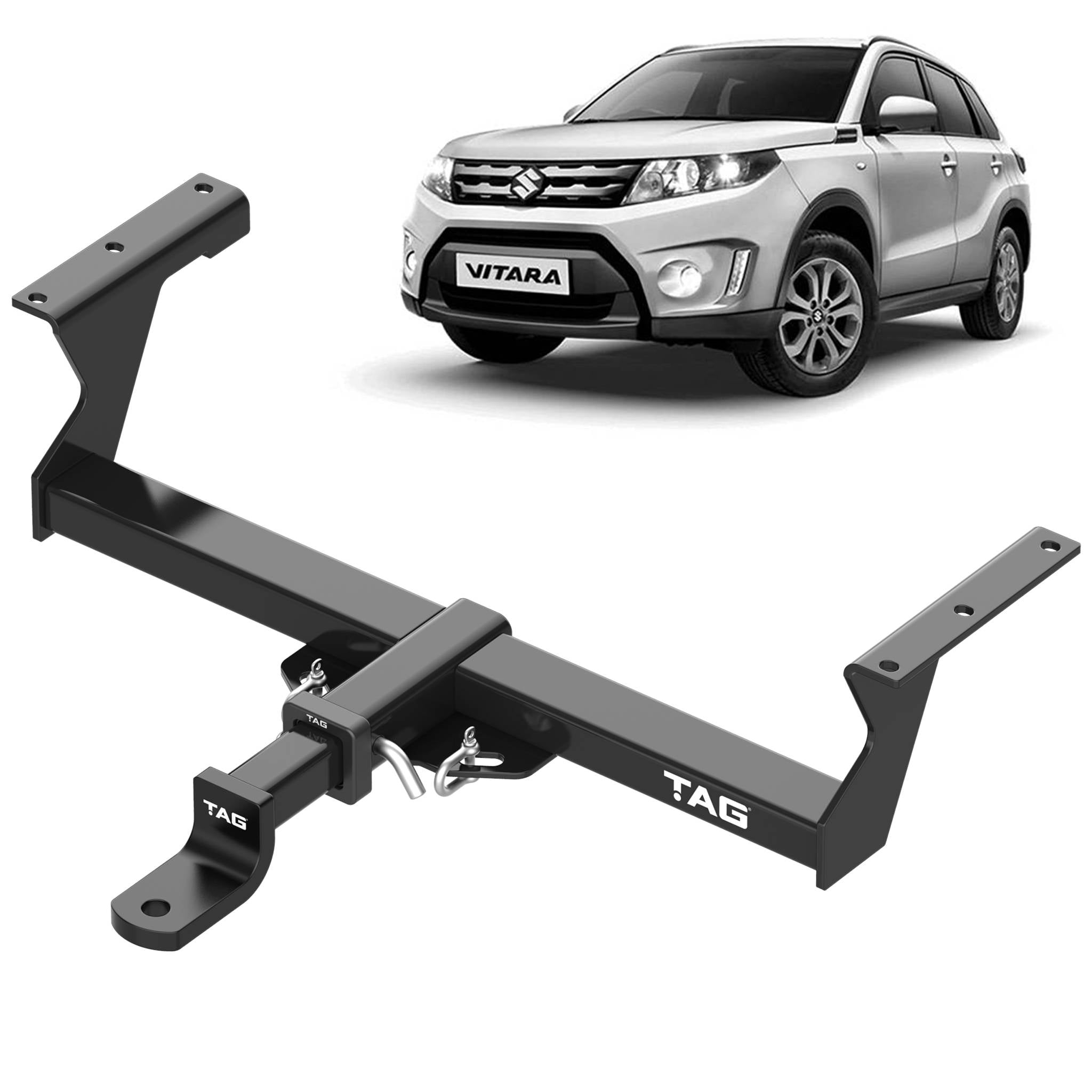

  • TAG Heavy Duty Towbar

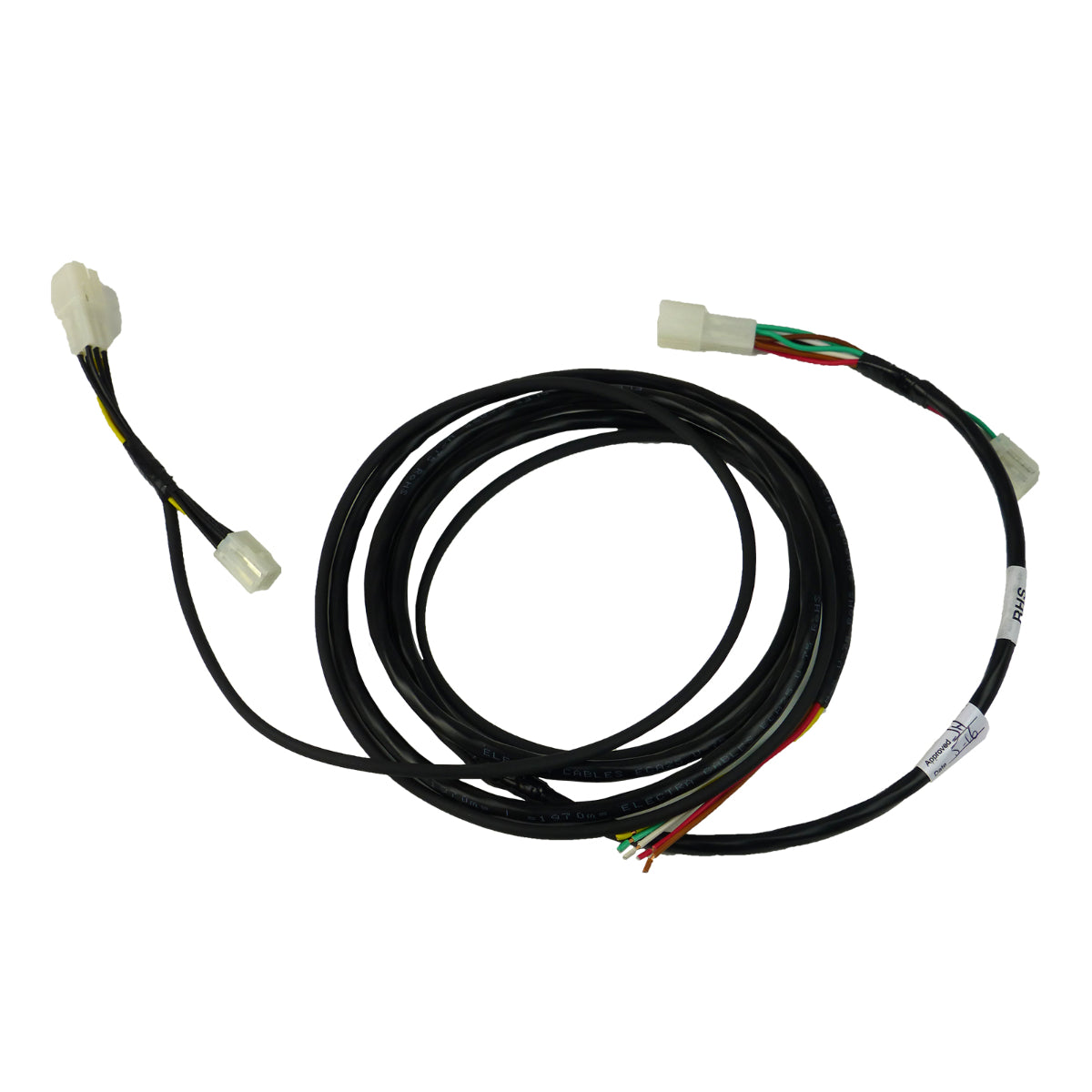

  • TAG Direct Fit Wiring Harness

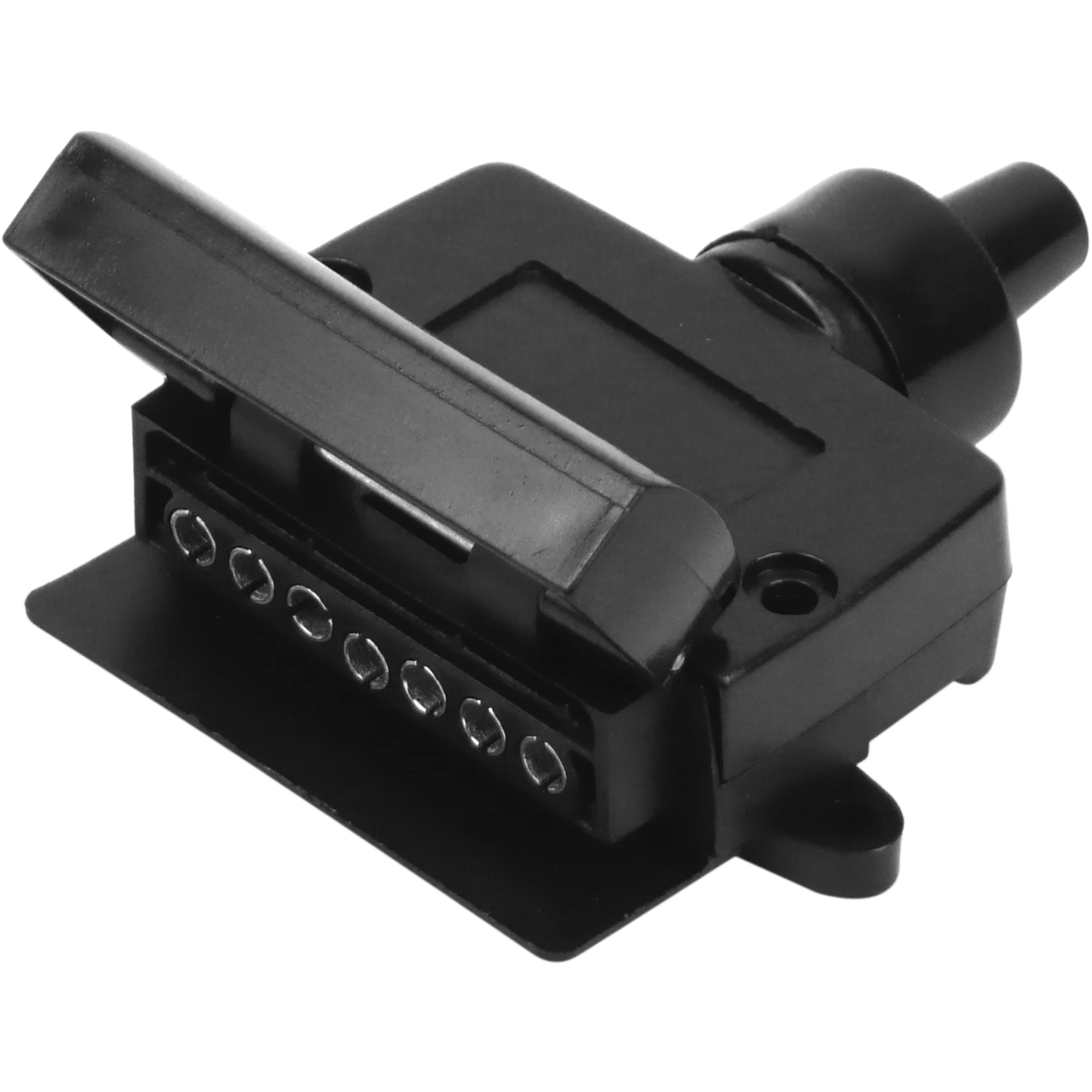

  • TAG 7 Pin Flat Socket - Vehicle Side

TAG Heavy Duty Towbars are designed and manufactured in Australia.

(5 Door Only. Will Not Fit 3 Door Model)

  • Utilises factory mounting points for ease of fitment

  • Durable Powder Coated Finish.

  • Class 4 Receiver - 50mm x 50mm Hitch

  • TAG Limited Lifetime Warranty

  • Towbar includes - towball, ballmount, pin & clip and dshackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
  • Diagnostic Coding: Not Applicable
  • Reverse Sensor Cut Off: Not Applicable
  • Fog Cut Off: Not Applicable
  • Wiring Option: Direct Fit Wiring Harness
  • Fitting Time [min.]: 45 (UNT330)
  • Fitting Time [min.]: 60 (T4U504)
  • Towbar Class: Heavy Duty
  • Towbar Capacity [kg]: 2000
  • Hitch Type: 50mm Square Hitch Receiver
  • Coating: Enamel Immersion Dipped
  • Bumper Removed During Fitment: Yes
  • Exposure: Concealed
  • ECU Required: No
  • Ball Weight [kg]: 150
Suzuki Grand Vitara (09/2005 - 08/2018)
Make Model From To Body Series Engine Variant Drivetrain
SUZUKI GRAND VITARA 09/2008 08/2018 Wagon JT, TD, TE (JB424, JT424, TDA4) J24B | 2.4L | Petrol AWD
SUZUKI GRAND VITARA 01/2009 02/2015 Wagon JT, TD, TE (JB632, JT632, TDB4) N32A | 3.2L | Petrol AWD
SUZUKI GRAND VITARA 10/2005 02/2015 Wagon JT, TD, TE (JB419WD, JT419, TD44) F9QB, F9QC | 1.9L | Diesel DDiS AWD
SUZUKI GRAND VITARA 10/2005 02/2015 Wagon JT, TD, TE (JB419WD, JT419, TD44) F9QB, F9QC | 1.9L | Diesel DDiS AWD
SUZUKI GRAND VITARA 09/2005 02/2015 Wagon JT, TD, TE (JB416, TA74) M16A | 1.6L | Petrol AWD
SUZUKI GRAND VITARA 09/2005 02/2015 Wagon JT, TD, TE (JB420, TD54) J20A | 2.0L | Petrol AWD
