This Kit Includes:
Extreme Recovery Towbar
Direct Fit Wiring Harness
7 Pin Flat Plug (Vehicle Side)

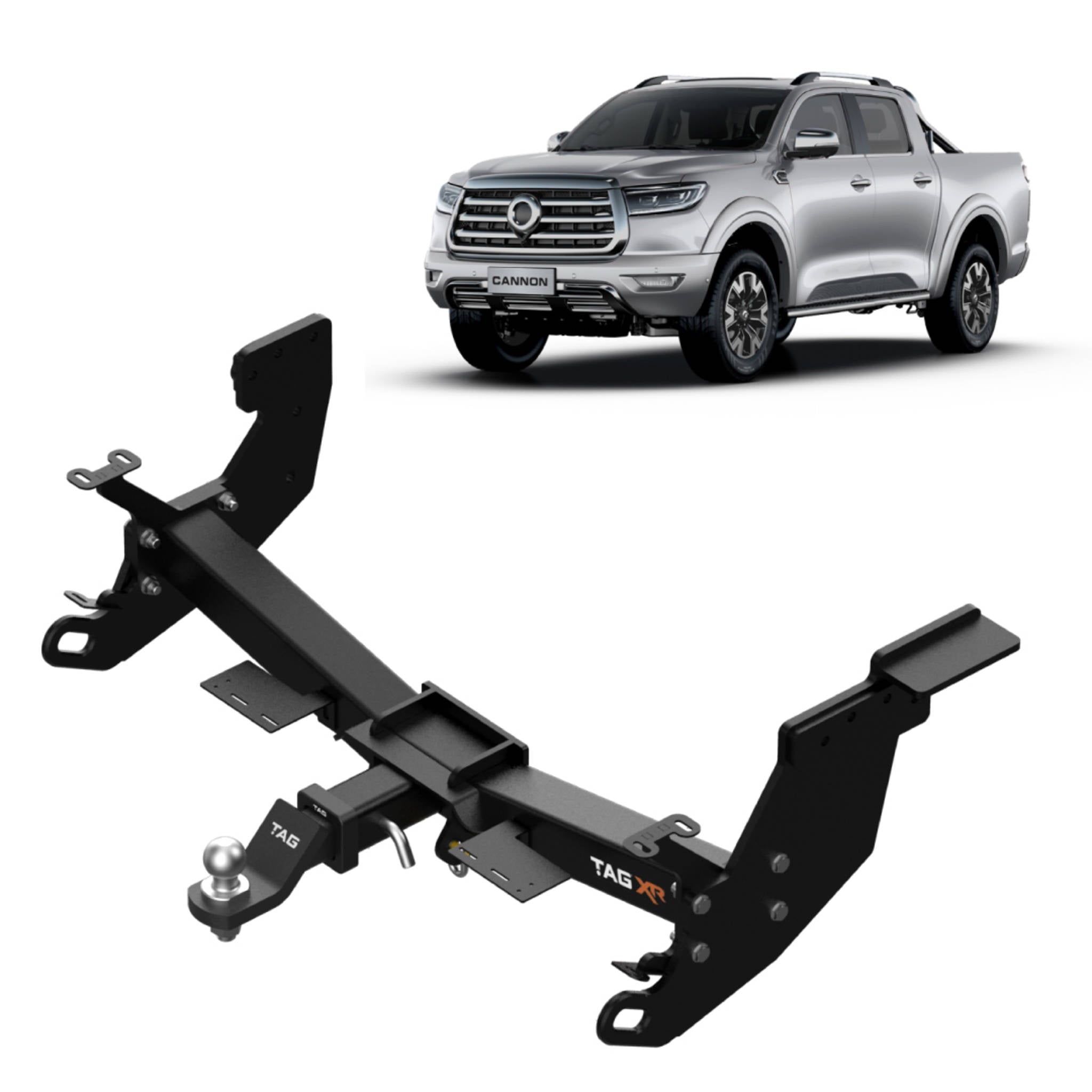

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
# Will not fit XSR or Alpha Model Cannons
Featuring:
Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Textured Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

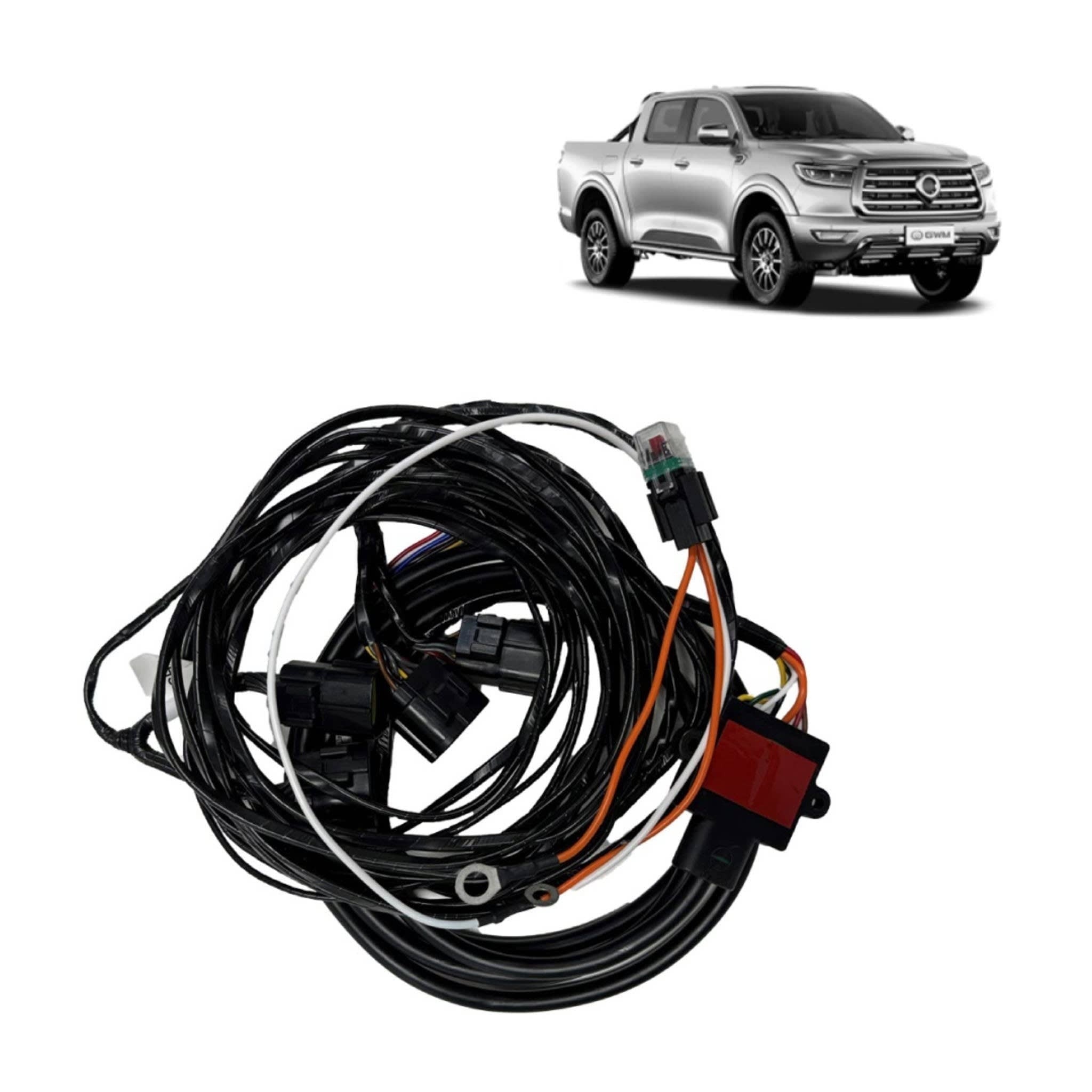

Direct Fit Wiring Harness:
No special tools or soldering required.
Compatible with Trailer Stability Programming (TSP), Lane Collision Avoidance systems, Park Distance Controls (PDC).
Does not interfere with brake lights, turning signals and live wire connection.
Comes With 7 PIN Flat Plug (UNT032)
TAG Limited Lifetime Warranty.
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towing Capacity [kg]: 3000
- Ball Weight [kg]: 300
- Recovery Load-tested: 4000
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Tow Ball Mount: L4045TXR
- Coating: Powder Coated
- Remove Bumper: Yes
- Bumper Cut Out Required: No
- Exposure: Partially concealed
- Fitting Time Approx: 90
- Wiring Option: Direct Fit Wiring Harness
- Fits Vehicle Year From: 2021
- Fits Vehicle Year From (Month): 01
- Diagnostic Coding: Not Applicable
- Reverse Sensor Cut Off: Optional
- Style: 7 Pin Flat
- Type: Plugs & Sockets
GWM UTE (09/2020 - on)
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
GWM | UTE | 09/2020 | - | Cab Chassis | GW4D20M | 2.0L | Diesel | AWD | ||
GWM | UTE | 09/2020 | - | Cab Chassis | GW4D20M | 2.0L | Diesel | RWD | ||
GWM | UTE | 09/2020 | - | Cab Chassis | GW4D20 | 2.0L | Diesel | CANNON | Manual RWD | |
GWM | UTE | 09/2020 | - | Cab Chassis | GW4D20 | 2.0L | Diesel | CANNON, CANNON-L, CANNON-X | Automatic 4WD | |
GWM | UTE | 09/2020 | - | Ute | NPW | 2.0L | - | Cannon | 4X4 |
GWM | UTE | 09/2020 | - | Ute | GW4D20 | 2.0L | Diesel | CANNON | Automatic RWD | |
GWM | UTE | 09/2020 | - | Ute | GW4D20 | 2.0L | Diesel | CANNON, CANNON-L, CANNON-X | Automatic 4WD |
