TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 76 Series Wagon (03/2007 - On)
TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 76 Series Wagon (03/2007 - On)
TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 76 Series Wagon (03/2007 - On)
  • Load image into Gallery viewer, TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 76 Series Wagon (03/2007 - On)
  • Load image into Gallery viewer, TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 76 Series Wagon (03/2007 - On)
  • Load image into Gallery viewer, TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 76 Series Wagon (03/2007 - On)

TAG Extreme Recovery Towbar & Direct Fit Wiring for Toyota Landcruiser 76 Series Wagon (03/2007 - On)

$906.63
$906.63
Sold out

Tax included. Shipping calculated at checkout.

This Kit Includes:

  • Tag Extreme Recovery Towbar

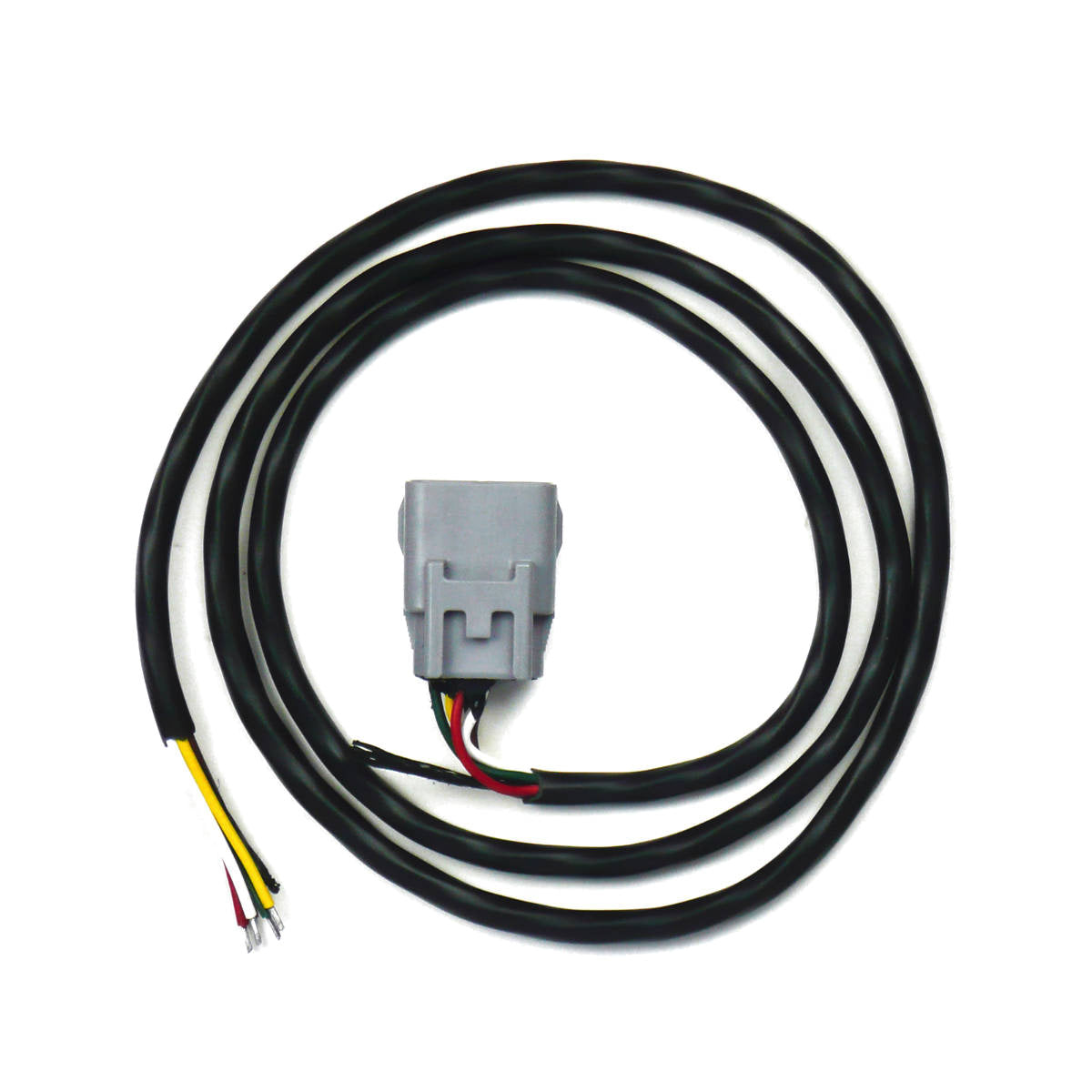

  • Direct Fit Wiring

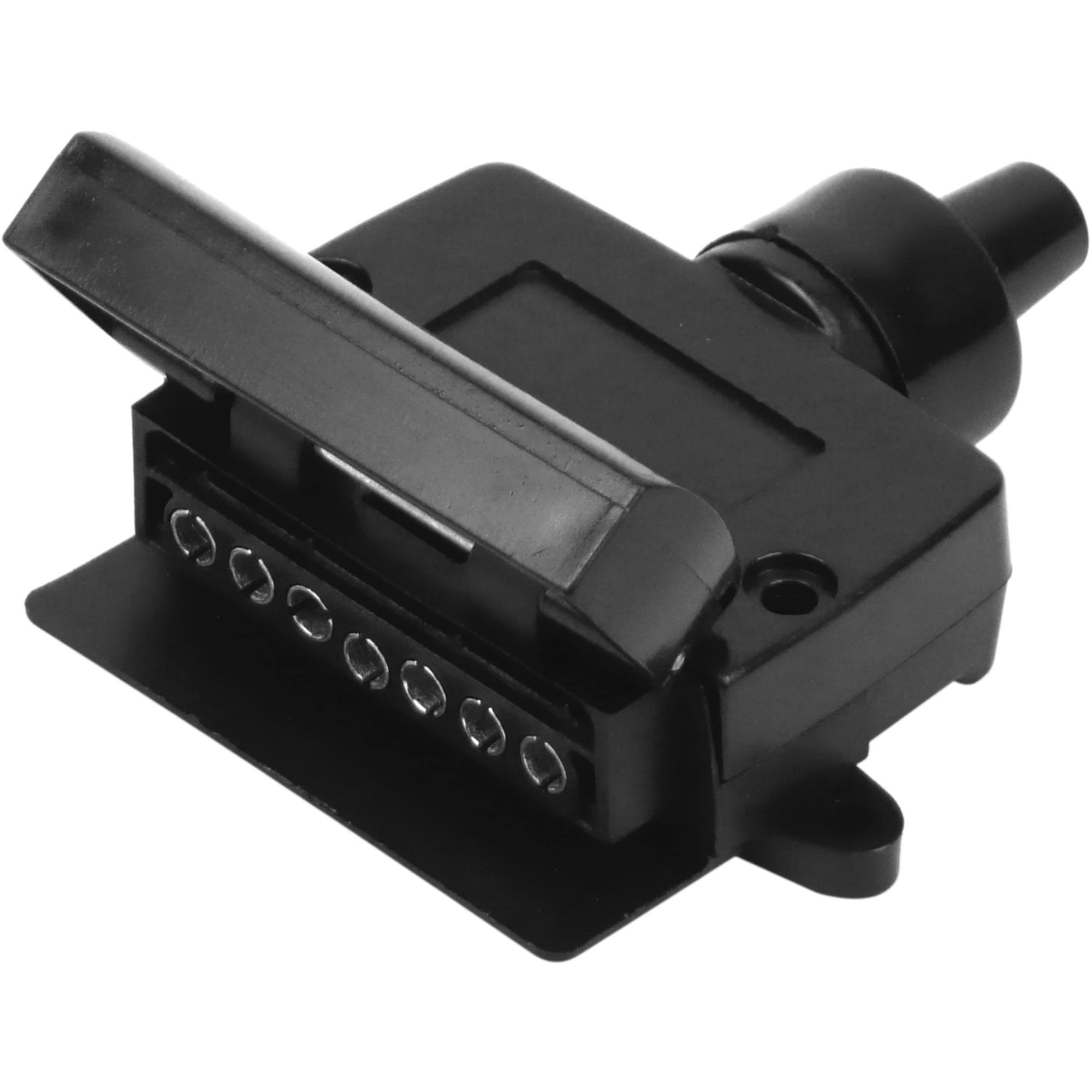

  • 7 Pin Flat Plug

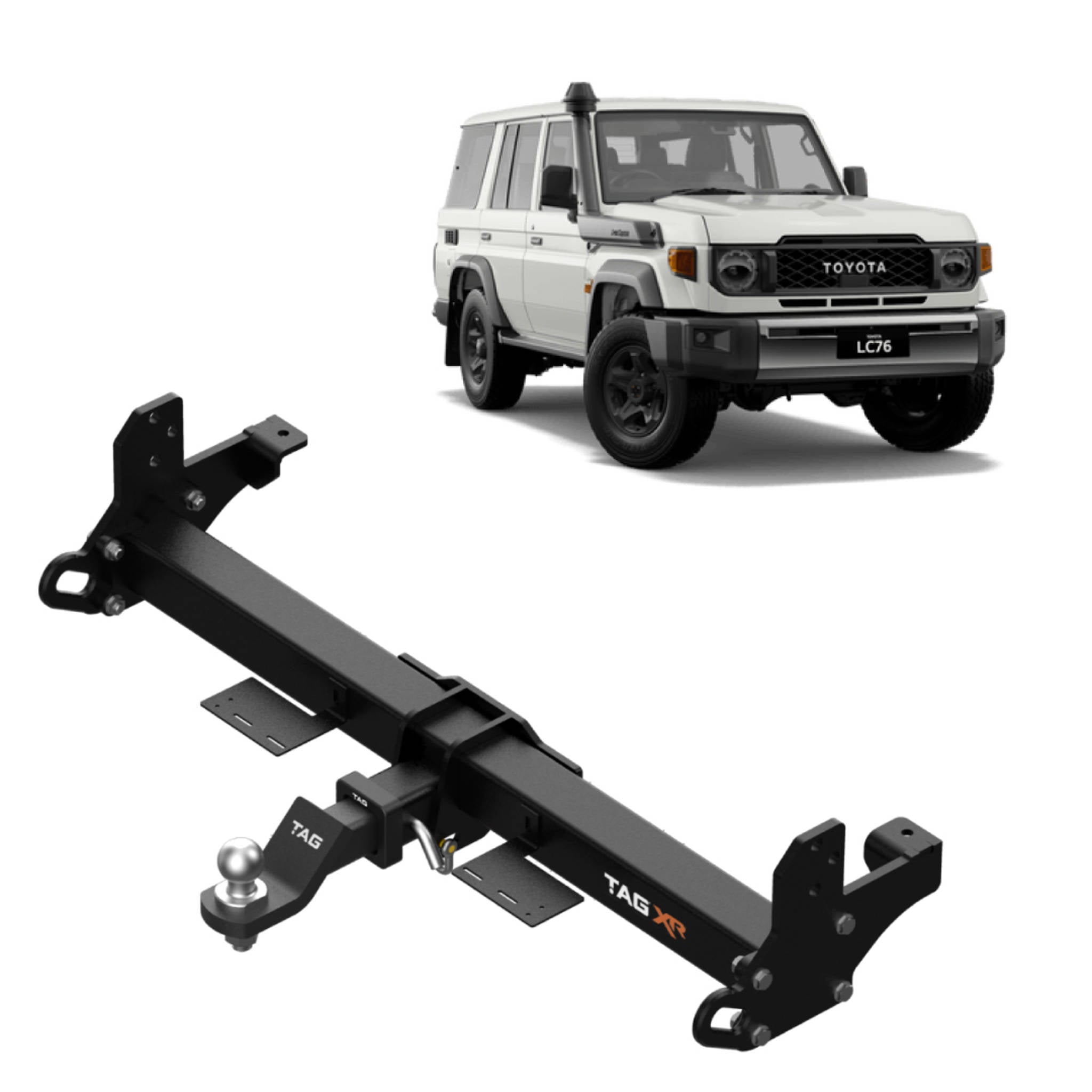

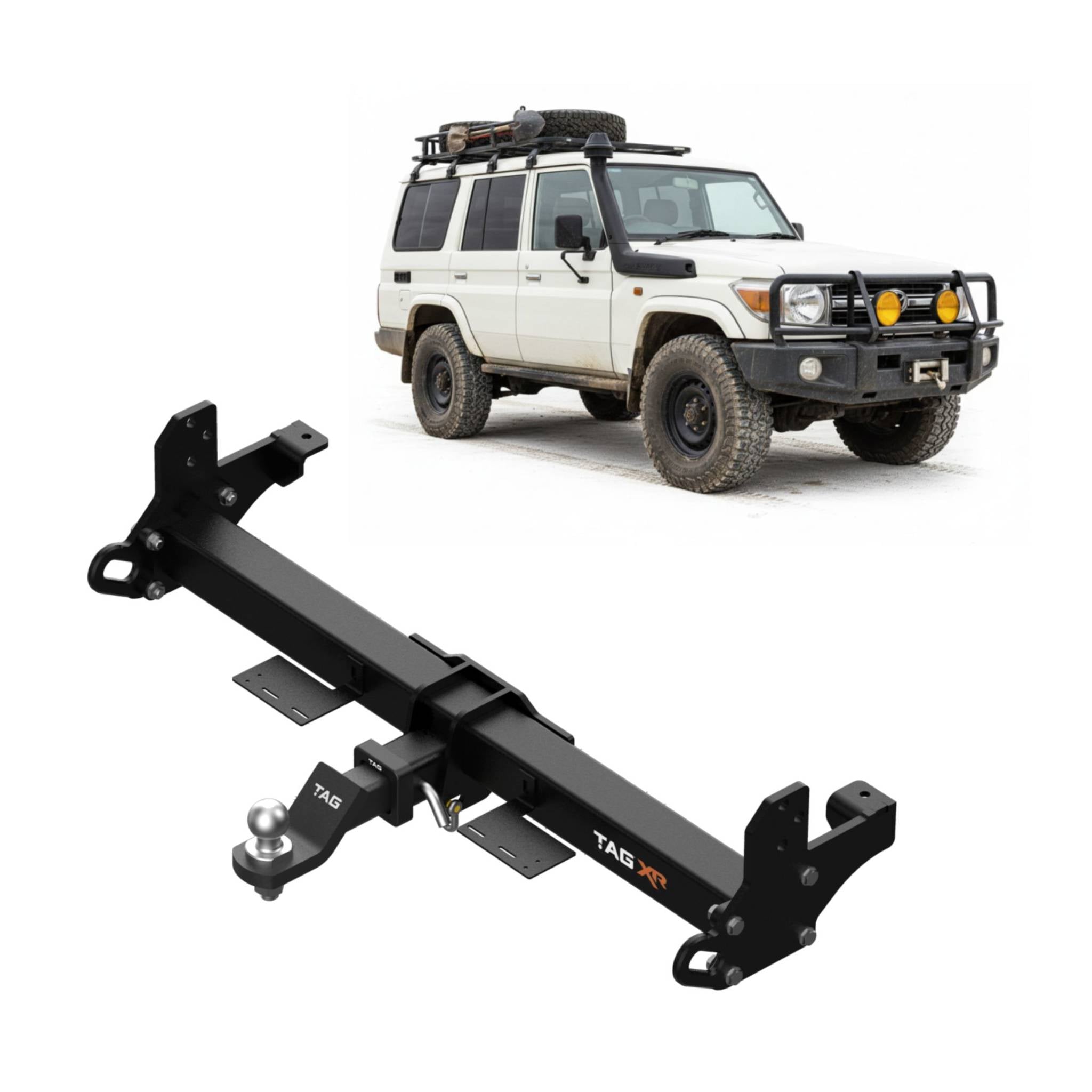

Extreme Recovery Towbar:

  • Extreme Duty Reinforced Crossbar

  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Textured Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
  • Diagnostic Coding: Not Required
  • Fog Cut Off: Not Applicable
  • Reverse Sensor Cut Off: Not Applicable
  • Wiring Option: Direct Fit Wiring Harness
  • Fitting Time [min.]: 30 (UNT272)
  • Fitting Time [min.]: 90 (TXR853)
  • Ball Weight [kg]: 350
  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towbar Capacity [kg]: 3500
  • Recovery Load-tested: 4000kg WLL
  • Recovery Points: 2
  • Hitch Type: Heavy Duty 50mm Square
  • Tow Ball Mount: L4045TXR
  • Coating: Textured Powder Coated
  • Bumper Removed During Fitment: Yes
  • Bumper Cut Out Required: No
  • Exposure: Exposed
Toyota Landcruiser (01/2007 - on)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA LANDCRUISER 09/2023 - Wagon GDJL78R, GDJL76R 1GD-FTV | 2.8L | Diesel D-4D 3.5t 4WD
TOYOTA LANDCRUISER 09/2023 - Wagon VDJL78R, VDJL76R 1VD-FTV | 4.5L | Diesel TD 32V 3.5t 4WD
TOYOTA LANDCRUISER 09/2022 - Wagon VDJ76 1VDFTV | 4.5L | Diesel GXL, Workmate Manual 4WD
TOYOTA LANDCRUISER 09/2016 - Wagon VDJ76 1VD-FTV | 4.5L | Diesel VDJ (with DPF) 4WD
TOYOTA LANDCRUISER 03/2007 - Wagon 76 Series 1VD-FTV | 4.5L | Diesel VDJ76R, 70TH ANNIVERSARY SPECIAL EDITION, GXL, WORKMATE Manual 4WD
TOYOTA LANDCRUISER 01/2016 12/2022 Wagon VDJ76 1VD-FTV | 4.5L | Diesel Manual 4X4
TOYOTA LANDCRUISER 01/2007 08/2022 Wagon VDJ76R, VDJ78R 1VD-FTV | 4.5L | Diesel TD 32V 4WD
TOYOTA LANDCRUISER 01/2007 08/2022 Wagon VDJ76R, VDJ78R 1VD-FTV | 4.5L | Diesel TD 32V 4WD

Download Instructions for (TXR853-K201)
