TAG 4x4 Recovery Towbar for Toyota Prado (08/2009 - on)
TAG 4x4 Recovery Towbar for Toyota Prado (08/2009 - on)
TAG 4x4 Recovery Towbar for Toyota Prado (08/2009 - on)
  • Load image into Gallery viewer, TAG 4x4 Recovery Towbar for Toyota Prado (08/2009 - on)
  • Load image into Gallery viewer, TAG 4x4 Recovery Towbar for Toyota Prado (08/2009 - on)
  • Load image into Gallery viewer, TAG 4x4 Recovery Towbar for Toyota Prado (08/2009 - on)

TAG 4x4 Recovery Towbar for Toyota Prado (08/2009 - on)

Regular price
$1,042.24
Sale price
$1,042.24
Regular price
Sold out
Unit price
per

Tax included. Shipping calculated at checkout.

# Please note that this towbar will not fit with a spare wheel under the vehicle. If you have a spare wheel you will need T7T728.

This Kit Includes:

· TAG 4x4 Recovery Towbar

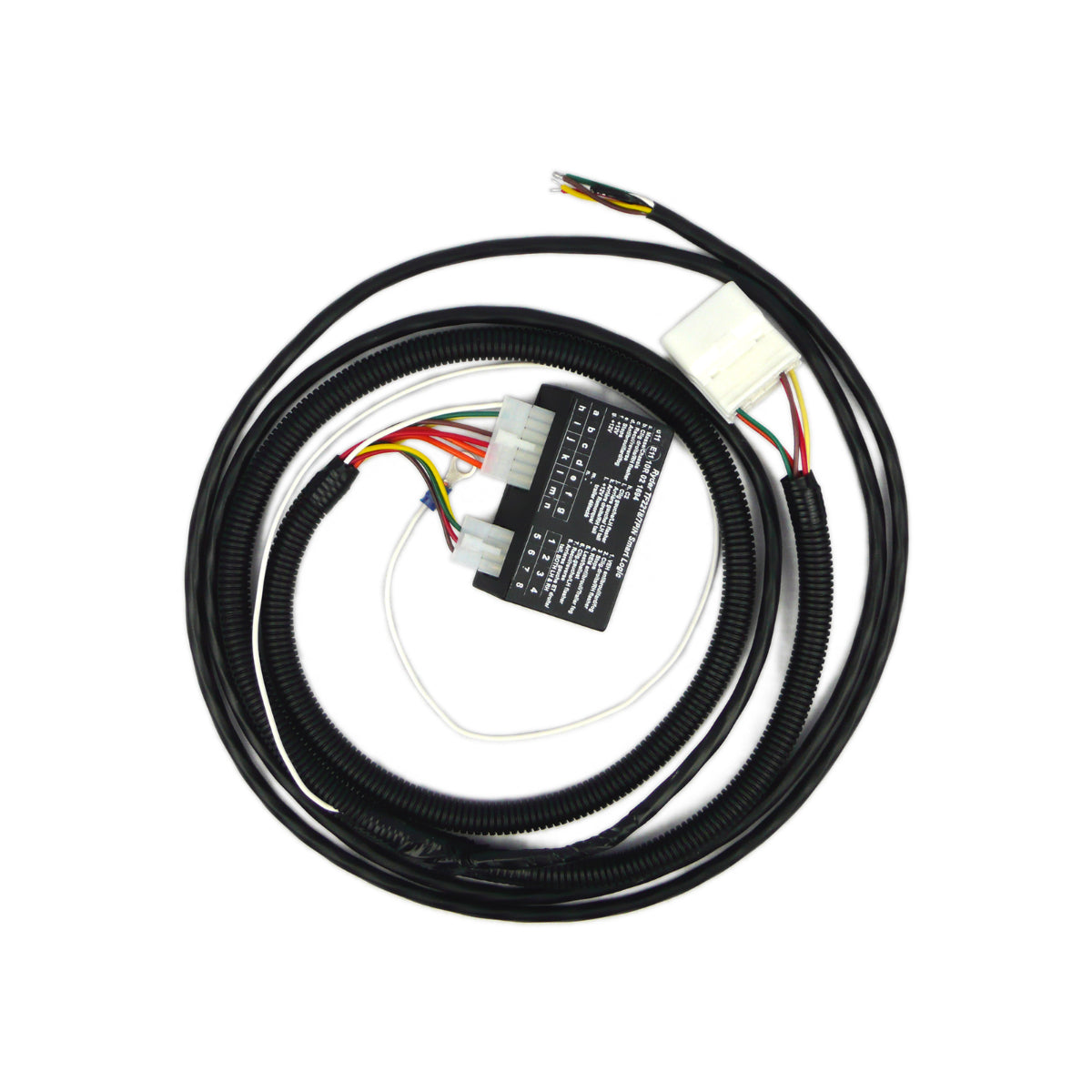

· TAG Direct Fit Wiring Harness

· TAG 7 Pin Flat Socket - Vehicle Side

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

  • Extreme Duty Reinforced Crossbar

  • Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Highly durable, textured Extreme Duty Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3000kg towing capacity / 300kg ball weight, Pin & Clip and D-Shackles

Specifications
  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towing Capacity: 3000
  • Ball Weight [kg]: 300
  • Recovery Load-tested: 4000
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4180
  • Coating: Powder Coated
  • Remove Bumper: No
  • Bumper Cut Out Required: No
  • Exposure: Exposed
  • Fitting Time Approx: 90
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
  • Reverse Sensor Cut Off: Not Applicable
  • Diagnostic Coding: Not Required
  • Fog Cut Off: Not Applicable
  • Wiring Option: Direct Fit ECU
Toyota Prado (08/2009 - on)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA PRADO 08/2020 - SUV GDJ150R 1GD-FTV | 2.8L | Diesel GX, GXL, KAKADU, VX Automatic 4WD
TOYOTA PRADO 08/2020 - SUV GDJ150 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA PRADO 08/2015 - SUV GDJ150R 1GD-FTV | 2.8L | Diesel . Automatic 4WD
TOYOTA PRADO 08/2015 - Wagon 150 Series 1GD-FTV | 2.8L | Diesel GDJ150R AWD
TOYOTA PRADO 08/2015 08/2020 SUV GDJ150R 1GD-FTV | 2.8L | Diesel ALTITUDE, GX, GXL, KAKADU, VX Automatic 4WD
TOYOTA PRADO 08/2015 09/2020 SUV GDJ150 1GD-FTV | 2.8L | Diesel D-4D AWD
TOYOTA PRADO 08/2015 11/2017 SUV GRJ150R 1GR-FE | 4.0L | Petrol GX, GXL, KAKADU, VX Automatic 4WD
TOYOTA PRADO 08/2015 10/2017 SUV GRJ150 1GR-FE | 4.0L | Petrol V6 VVT-i AWD
TOYOTA PRADO 08/2013 12/2017 Wagon 150 Series 1GR-FE | 4.0L | - GRJ150R
TOYOTA PRADO 08/2013 11/2017 Wagon 150 Series 1GR-FE | 4.0L | Petrol GRJ150R (facelift) AWD
TOYOTA PRADO 08/2013 07/2015 Wagon 150 Series 1KD-FTV | 3.0L | Diesel KDJ150R (facelift) AWD
TOYOTA PRADO 08/2009 06/2015 Wagon KDJ150, KDJ155 1KD-FTV | 3.0L | Diesel D-4D AWD
TOYOTA PRADO 08/2009 11/2013 Wagon 150 Series 1GR-FE | 4.0L | Petrol GRJ150R AWD
TOYOTA PRADO 08/2009 11/2013 Wagon 150 Series 1GR-FE | 4.0L | Petrol GRJ150R AWD
TOYOTA PRADO 08/2009 11/2013 Wagon 150 Series 4.0L | Petrol GRJ150R AWD
TOYOTA PRADO 08/2009 11/2013 Wagon 150 Series 4.0L | Petrol GRJ150R AWD
Toyota Prado (08/2009 - on), Rav4 (12/2012 - 02/2019)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA PRADO 08/2015 - Wagon 150 Series 1GD-FTV | 2.8L | Diesel GDJ150R AWD
TOYOTA PRADO 08/2015 08/2020 SUV GDJ150R 1GD-FTV | 2.8L | Diesel ALTITUDE, GX, GXL, KAKADU, VX Automatic 4WD
TOYOTA PRADO 09/2015 11/2017 SUV GRJ150R 1GR-FE | 4.0L | Petrol GX, GXL, KAKADU, VX Automatic 4WD
TOYOTA PRADO 11/2013 11/2017 Wagon 150 Series 1GR-FE | 4.0L | Petrol GRJ150R (facelift) AWD
TOYOTA PRADO 11/2013 07/2015 Wagon 150 Series 1KD-FTV | 3.0L | Diesel KDJ150R (facelift) AWD
TOYOTA PRADO 11/2009 08/2015 SUV GRJ150R 1GR-FE | 4.0L | Petrol ALTITUDE, GX, GXL, KAKADU, VX Automatic/Manual 4WD
TOYOTA PRADO 11/2009 08/2015 SUV 150 Series 1KD-FTV | 3.0L | Diesel KDJ150R Automatic/Manual 4WD
TOYOTA PRADO 11/2009 08/2015 SUV 150 Series 1KD-FTV | 3.0L | Diesel KDJ150R Automatic/Manual 4WD
TOYOTA PRADO 08/2009 06/2015 SUV KDJ150, KDJ155 1KD-FTV | 3.0L | Diesel D-4D AWD
TOYOTA PRADO 08/2009 06/2015 Wagon KDJ150, KDJ155 1KD-FTV | 3.0L | Diesel D-4D AWD
TOYOTA PRADO 11/2009 11/2013 Wagon 150 Series 4.0L | Petrol GRJ150R AWD
TOYOTA PRADO 11/2009 11/2013 Wagon 150 Series 1GR-FE | 4.0L | Petrol GRJ150R AWD
TOYOTA PRADO 11/2009 11/2013 Wagon 150 Series 1GR-FE | 4.0L | Petrol GRJ150R AWD
TOYOTA PRADO 11/2009 11/2013 Wagon 150 Series 4.0L | Petrol GRJ150R AWD
TOYOTA PRADO 11/2009 10/2013 Wagon 150 Series 1KD-FTV | 3.0L | Diesel KDJ155R Automatic/Manual 4WD
TOYOTA PRADO 11/2009 10/2013 Wagon 150 Series 1KD-FTV | 3.0L | Diesel KDJ155R Automatic/Manual 4WD
TOYOTA RAV4 12/2015 02/2019 SUV ALA49R 2ADFHV | 2.2L | Diesel CRUISER Automatic AWD
TOYOTA RAV4 12/2015 02/2019 SUV ALA49R 2ADFHV | 2.2L | Diesel GX Manual AWD
TOYOTA RAV4 12/2015 02/2019 SUV ALA49R 2ADFHV | 2.2L | Diesel GX Automatic AWD
TOYOTA RAV4 12/2015 02/2019 SUV ASA44R 2ARFE | 2.5L | Petrol GXL AWD
TOYOTA RAV4 12/2015 02/2019 SUV ALA49R 2ADFHV | 2.2L | Diesel GXL Manual AWD
TOYOTA RAV4 12/2015 02/2019 SUV ALA49R 2ADFHV | 2.2L | Diesel GXL AWD
TOYOTA RAV4 12/2015 02/2019 SUV ZSA42R 3ZRFE | 2.0L | Petrol GXL FWD
TOYOTA RAV4 02/2013 02/2019 SUV ZSA42R 3ZRFE | 2.0L | Petrol GX Manual FWD
TOYOTA RAV4 02/2013 02/2019 SUV ZSA42R 3ZRFE | 2.0L | Petrol GXL Manual FWD
TOYOTA RAV4 12/2015 12/2018 Wagon ALA49R 2AD-FHV | 2.2L | Diesel D-4D AWD
TOYOTA RAV4 12/2012 12/2018 SUV ASA44 2AR-FE | 2.5L | Petrol AWD
TOYOTA RAV4 12/2012 12/2018 SUV ZSA42 3ZR-FE | 2.0L | Petrol FWD
TOYOTA RAV4 12/2012 12/2018 SUV ALA49 2AD-FHV, 2AD-FTV | 2.2L | Diesel D AWD
TOYOTA RAV4 02/2013 11/2015 SUV ASA44R 2ARFE | 2.5L | Petrol GX Automatic/Manual AWD
TOYOTA RAV4 02/2013 11/2015 SUV ALA49R 2ADFTV | 2.2L | Diesel GX Automatic/Manual AWD
TOYOTA RAV4 02/2013 11/2015 SUV ALA49R 2ADFTV | 2.2L | Diesel GXL, CRUISER Automatic/Manual AWD
TOYOTA RAV4 02/2013 11/2015 SUV ASA44R 2ARFE | 2.5L | Petrol GXL| CRUISER Automatic/Manual AWD
TOYOTA RAV4 02/2013 11/2015 Wagon ASA44R 2.5L | Petrol AWD
