This Kit Includes:

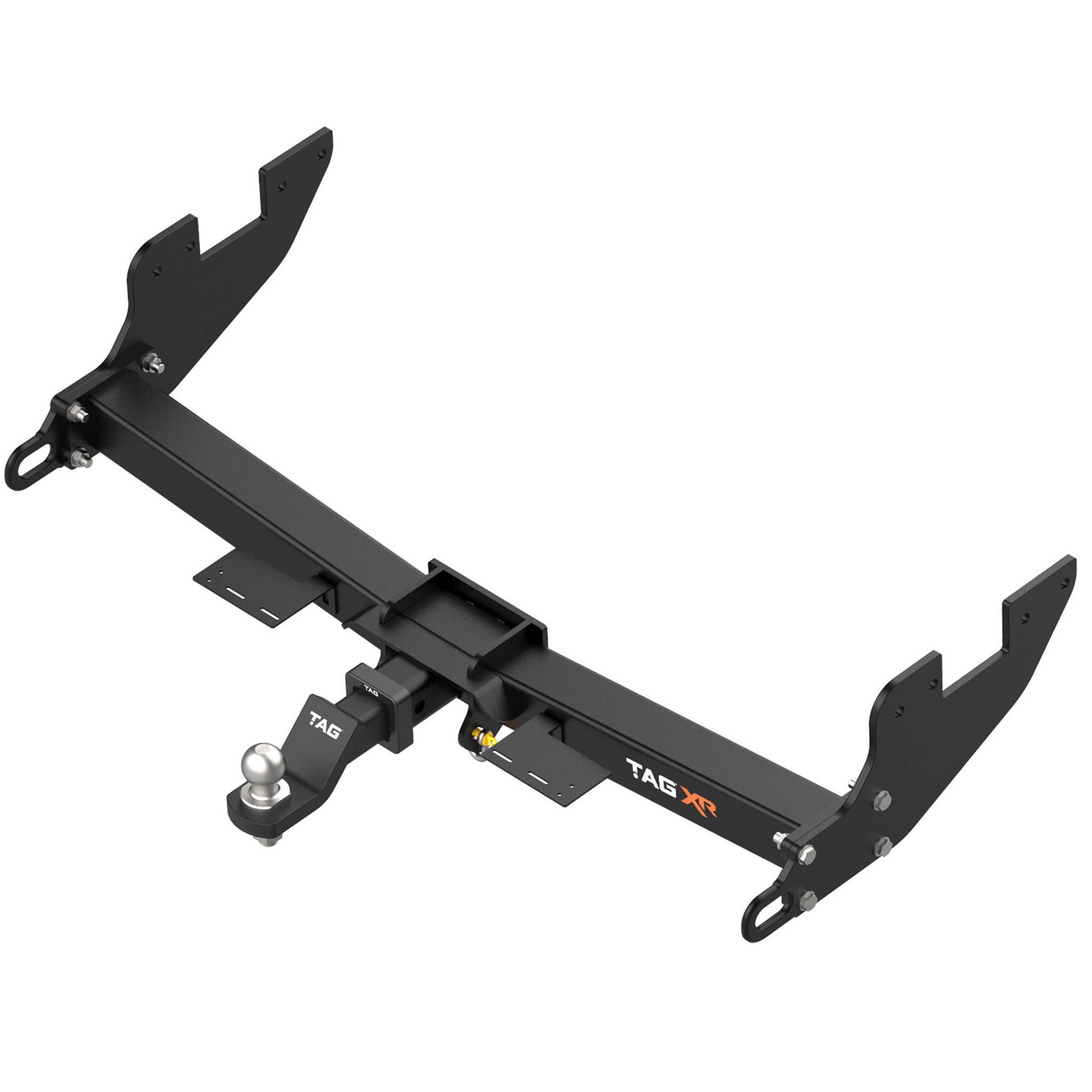

TAG 4x4 Recovery Towbar - (Suits Styleside models)

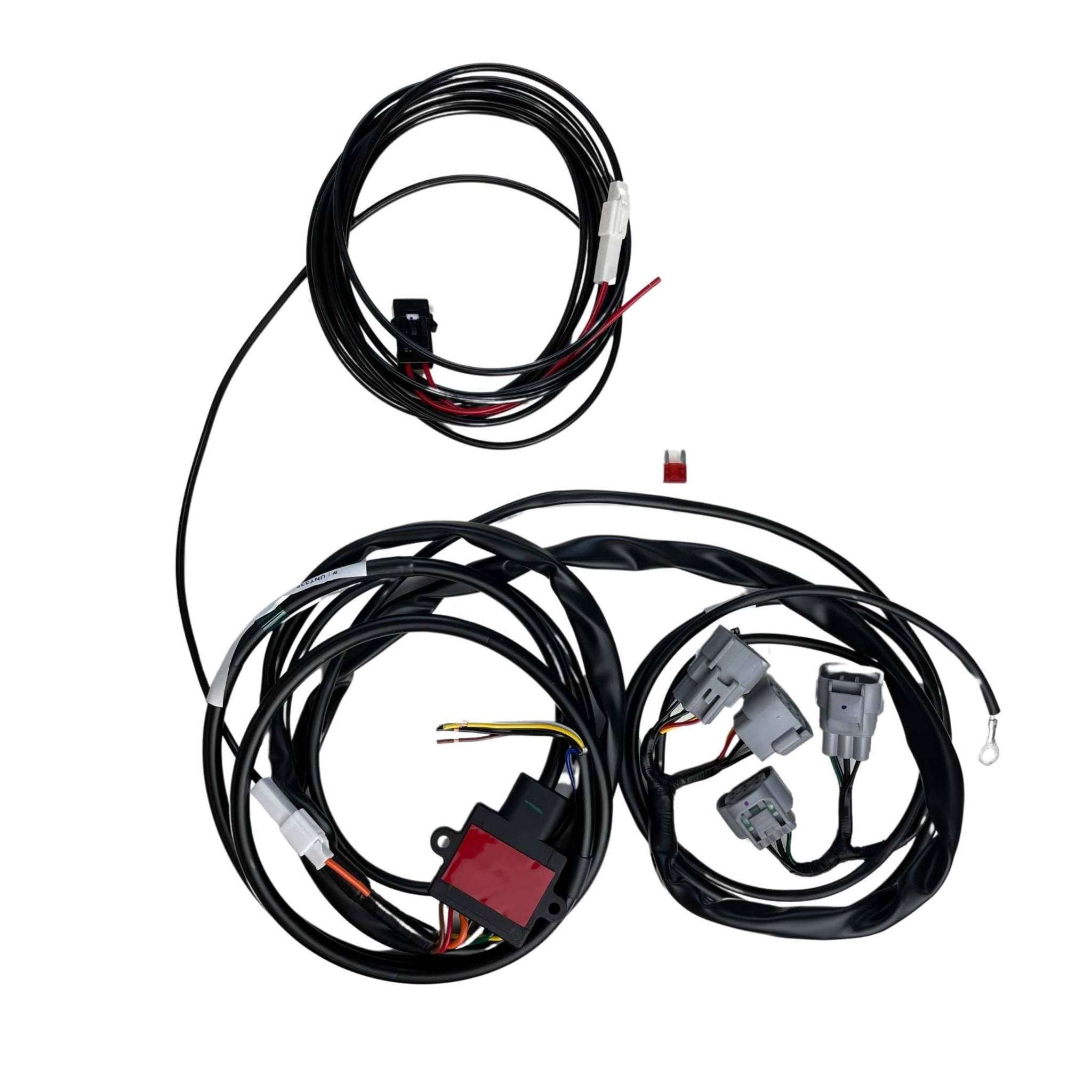

TAG Direct Fit Wiring Harness

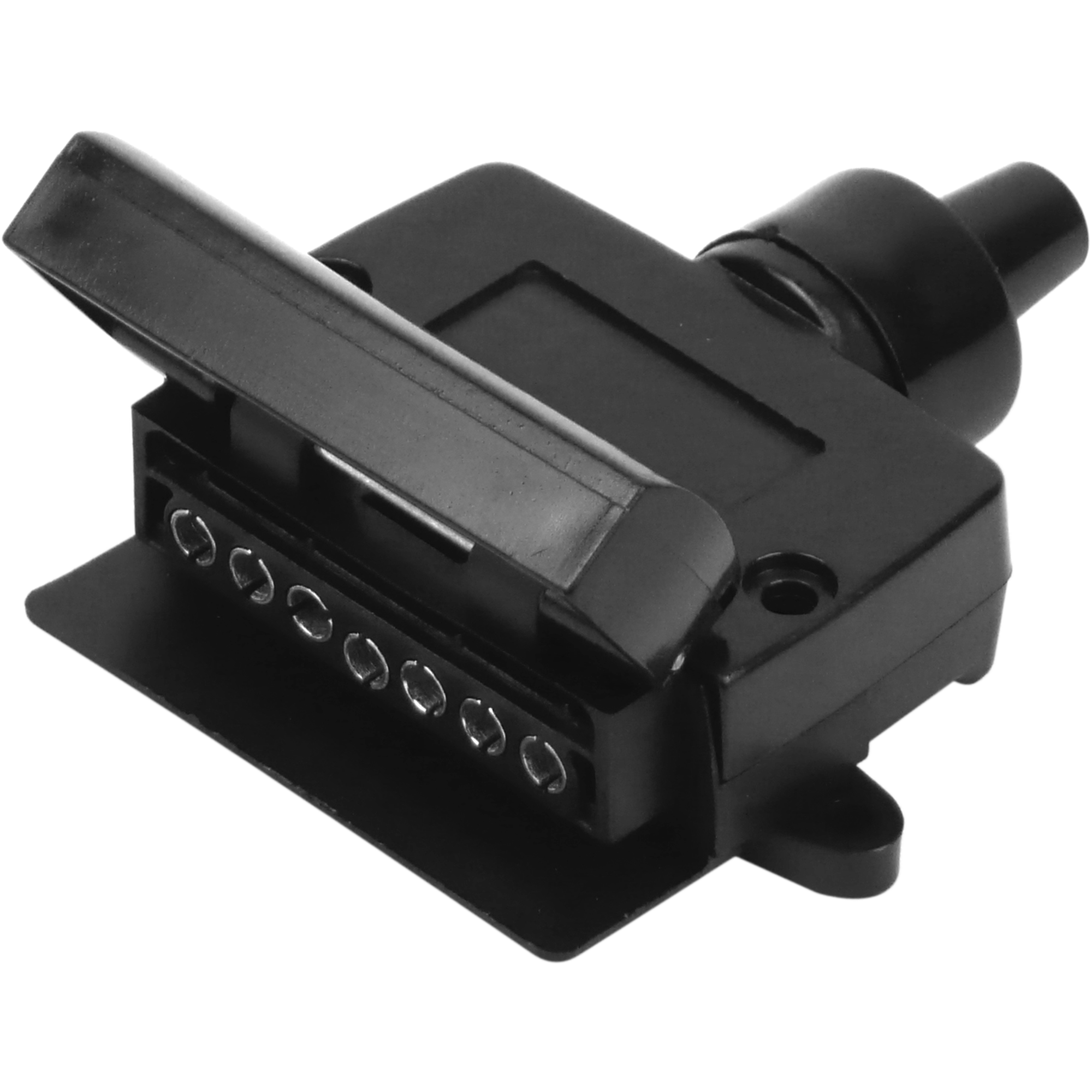

TAG 7 Pin Flat Socket - Vehicle Side
Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
Featuring:
75mm x 75mm Extreme Duty Reinforced Crossbar
Two WLL 4000kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Highly durable, textured Extreme Duty Powder Coated Finish
Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towing Capacity: 3500
- Ball Weight [kg]: 350
- Recovery Load-tested: 4000
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Coating: Powder Coated
- Remove Bumper: Yes
- Bumper Cut Out Required: NO
- Exposure: Exposed
- Fitting Time Approx: 1.5 Hr
- Style: 7 Pin Flat
- Type: Plugs & Sockets
- Reverse Sensor Cut Off: Automatic
- Diagnostic Coding: Not Applicable
- Fog Cut Off: Automatic
- Wiring Option: Direct Fit ECU
Toyota Hilux (10/2015 - on)
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
TOYOTA | HILUX | 10/2015 | - | Ute | TGN121R | 2TR-FE | 2.7L | Petrol | WORKMATE | Automatic/Manual RWD |
TOYOTA | HILUX | 10/2015 | - | Ute | TGN111R, TGN121R, TGN136R | 2TR-FE | 2.7L | Petrol | RWD | |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN125R | 2GD-FTV | 2.4L | Diesel | D | AWD |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN112R, GUN120R, GUN122R, GUN135R | 2GD-FTV | 2.4L | Diesel | D | RWD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | ROGUE, RUGGED, RUGGED X, SR5, SR5+ | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR HI-RIDER | Automatic/Manual RWD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN125R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | D | AWD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN136 | 1GD-FTV | 2.8L | Diesel | D | RWD |
TOYOTA | HILUX | 10/2015 | 06/2019 | Ute | GUN122R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Manual RWD |
TOYOTA | HILUX | 10/2015 | 09/2019 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | SR5 EXTRA CAB | Automatic 4WD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GUN123R | 1GD-FTV | 2.8L | Diesel | SR EXTRA CAB | Manual RWD |
TOYOTA | HILUX | 10/2015 | 07/2017 | Ute | GGN125, GGN135 | 1GR-FE | 4.0L | Petrol | AWD | |
TOYOTA | HILUX | 10/2015 | 07/2017 | Ute | GGN120R, GGN135R | 1GR-FE | 4.0L | Petrol | RWD | |
TOYOTA | HILUX | 10/2015 | 07/2017 | Ute | GUN123 | 1GD-FTV | 2.8L | Diesel | D | RWD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GGN120R | 1GR-FE | 4.0L | Petrol | SR | Automatic RWD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GGN125R | 1GR-FE | 4.0L | Petrol | SR5 | Automatic 4WD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR5 HI-RIDER | Automatic RWD |
TOYOTA | HILUX | 10/2015 | 10/2017 | Ute | GGN125R | 1GR-FE | 4.0L | Petrol | SR | Automatic 4WD |
TOYOTA | HILUX | 10/2015 | 09/2015 | Ute | KUN112R | 2KD-FTV | 2.5L | Diesel | SR EXTRA CAB | Manual RWD |
Toyota Hilux (10/2015 - on)
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
TOYOTA | HILUX | 10/2018 | - | Ute | GUN126 | 1GD-FTV | 2.8L | Diesel | Rogue| Rugged| Rugged X | 4WD |
TOYOTA | HILUX | 10/2015 | - | Cab Chassis | GUN126R | 1GD-FTV | 2.8L | Diesel | SR | AWD |
TOYOTA | HILUX | 10/2015 | - | Cab Chassis | GUN123 | 1GD-FTV | 2.8L | Diesel | SR | RWD |
TOYOTA | HILUX | 10/2015 | - | Cab Chassis | GUN125R | 2GD-FTV | 2.4L | Diesel | Workmate | AWD |
TOYOTA | HILUX | 10/2015 | - | Cab Chassis | GUN122R | 2GD-FTV | 2.4L | Diesel | Workmate | RWD |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | SR | AWD |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | SR5 | AWD |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR5 Hi-Rider | RWD |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR Hi-Rider | RWD |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN125R | 2GD-FTV | 2.4L | Diesel | Workmate | AWD |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN122R | 2GD-FTV | 2.4L | Diesel | Workmate | RWD |
TOYOTA | HILUX | 10/2015 | - | Cab Chassis | GUN112_, GUN122_, GUN135_ | 2GD-FTV | 2.4L | Diesel | D | RWD |
TOYOTA | HILUX | 10/2015 | - | Cab Chassis | TGN121 | 2TR-FE | 2.7L | Petrol | Workmate | RWD |
TOYOTA | HILUX | 10/2015 | - | Cab Chassis | TGN121R | 2TR-FE | 2.7L | Petrol | WORKMATE | Automatic/Manual RWD |
TOYOTA | HILUX | 10/2015 | - | Ute | TGN121 | 2TR-FE | 2.7L | Petrol | Workmate | RWD |
TOYOTA | HILUX | 10/2015 | - | Ute | TGN121R | 2TR-FE | 2.7L | Petrol | WORKMATE | Automatic/Manual RWD |
TOYOTA | HILUX | 10/2015 | - | Ute | TGN111R, TGN121R, TGN136R | 2TR-FE | 2.7L | Petrol | RWD | |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN125R | 2GD-FTV | 2.4L | Diesel | D | AWD |
TOYOTA | HILUX | 10/2015 | - | Ute | GUN112R, GUN120R, GUN122R, GUN135R | 2GD-FTV | 2.4L | Diesel | D | RWD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN126R | 1GD-FTV | 2.8L | Diesel | SR | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN126R | 1GD-FTV | 2.8L | Diesel | SR | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN126R | 1GD-FTV | 2.8L | Diesel | SR EXTRA CAB | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN125R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN125R | 2GD-FTV | 2.4L | Diesel | WORKMATE EXTRA CAB | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | ROGUE, RUGGED, RUGGED X, SR5, SR5+ | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR HI-RIDER | Automatic/Manual RWD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN125R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | D | AWD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN136 | 1GD-FTV | 2.8L | Diesel | D | RWD |
TOYOTA | HILUX | 10/2015 | 06/2019 | Cab Chassis | GUN122R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Manual RWD |
TOYOTA | HILUX | 10/2015 | 06/2019 | Ute | GUN122R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Manual RWD |
TOYOTA | HILUX | 10/2015 | 09/2019 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | SR5 EXTRA CAB | Automatic 4WD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Cab Chassis | GUN123R | 1GD-FTV | 2.8L | Diesel | SR | Manual RWD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GUN123R | 1GD-FTV | 2.8L | Diesel | SR EXTRA CAB | Manual RWD |
TOYOTA | HILUX | 10/2015 | 07/2017 | Ute | GGN125, GGN135 | 1GR-FE | 4.0L | Petrol | AWD | |
TOYOTA | HILUX | 10/2015 | 07/2017 | Ute | GGN120R, GGN135R | 1GR-FE | 4.0L | Petrol | RWD | |
TOYOTA | HILUX | 10/2015 | 07/2017 | Ute | GUN123 | 1GD-FTV | 2.8L | Diesel | D | RWD |
TOYOTA | HILUX | 10/2015 | 10/2017 | Ute | GGN125 | 1GR-FE | 4.0L | Petrol | SR | AWD |
TOYOTA | HILUX | 10/2015 | 10/2017 | Ute | GGN120 | 1GR-FE | 4.0L | Petrol | SR | RWD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GGN120R | 1GR-FE | 4.0L | Petrol | SR | Automatic RWD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GGN125R | 1GR-FE | 4.0L | Petrol | SR5 | Automatic 4WD |
TOYOTA | HILUX | 10/2015 | 10/2017 | Ute | GGN125 | 1GR-FE | 4.0L | Petrol | SR5 | AWD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR5 HI-RIDER | Automatic RWD |
TOYOTA | HILUX | 10/2015 | 10/2017 | Ute | GGN125R | 1GR-FE | 4.0L | Petrol | SR | Automatic 4WD |
TOYOTA | HILUX | 10/2015 | 09/2015 | Ute | KUN112R | 2KD-FTV | 2.5L | Diesel | SR EXTRA CAB | Manual RWD |
