TAG 4x4 Recovery Towbar for Toyota Hilux (10/2015 - on)

$1,338.54
$1,338.54
Sold out

Tax included. Shipping calculated at checkout.

Extreme Recovery Towbar to suit (07/2015 - On) Hilux models WITHOUT a rear bumper step.

This Kit Includes:

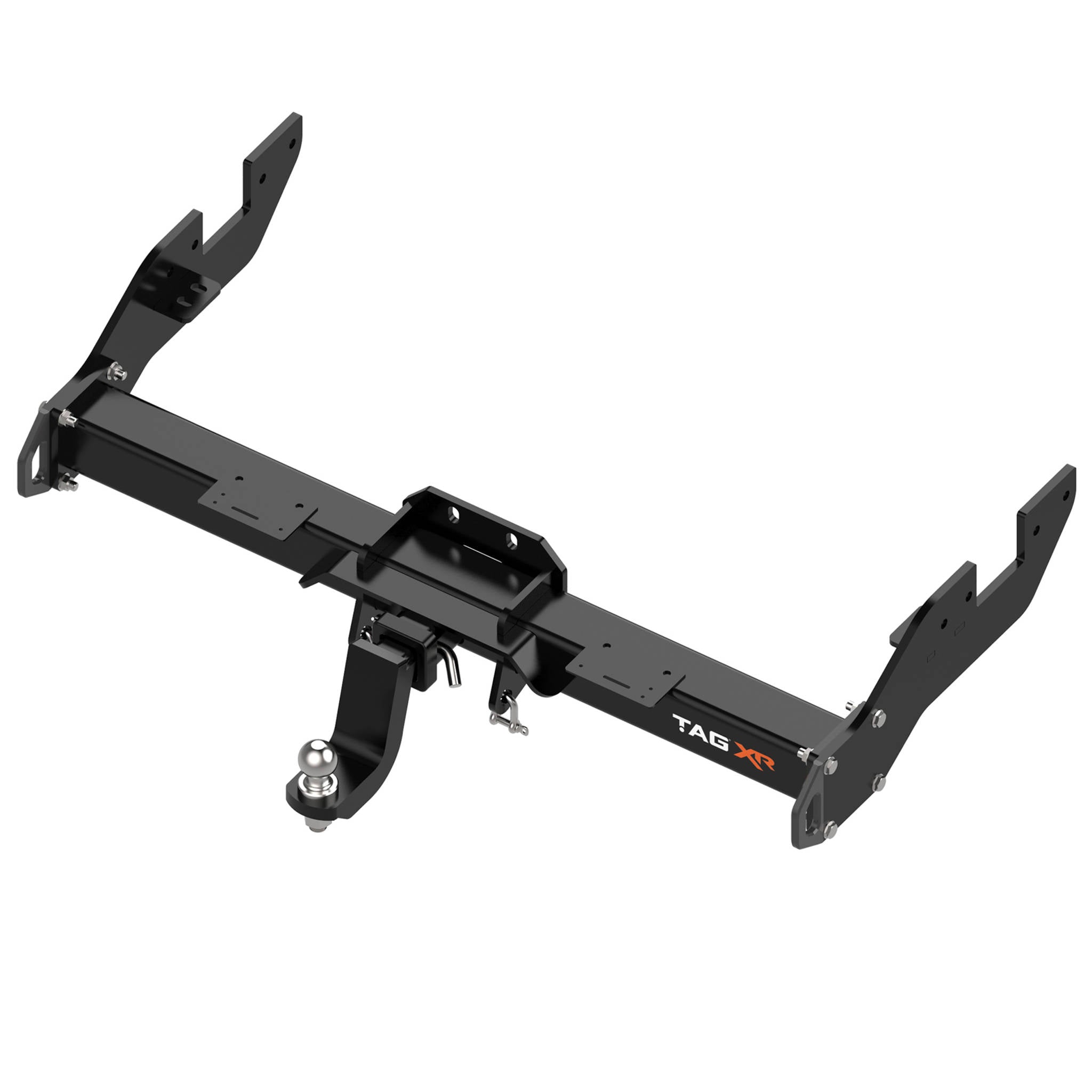

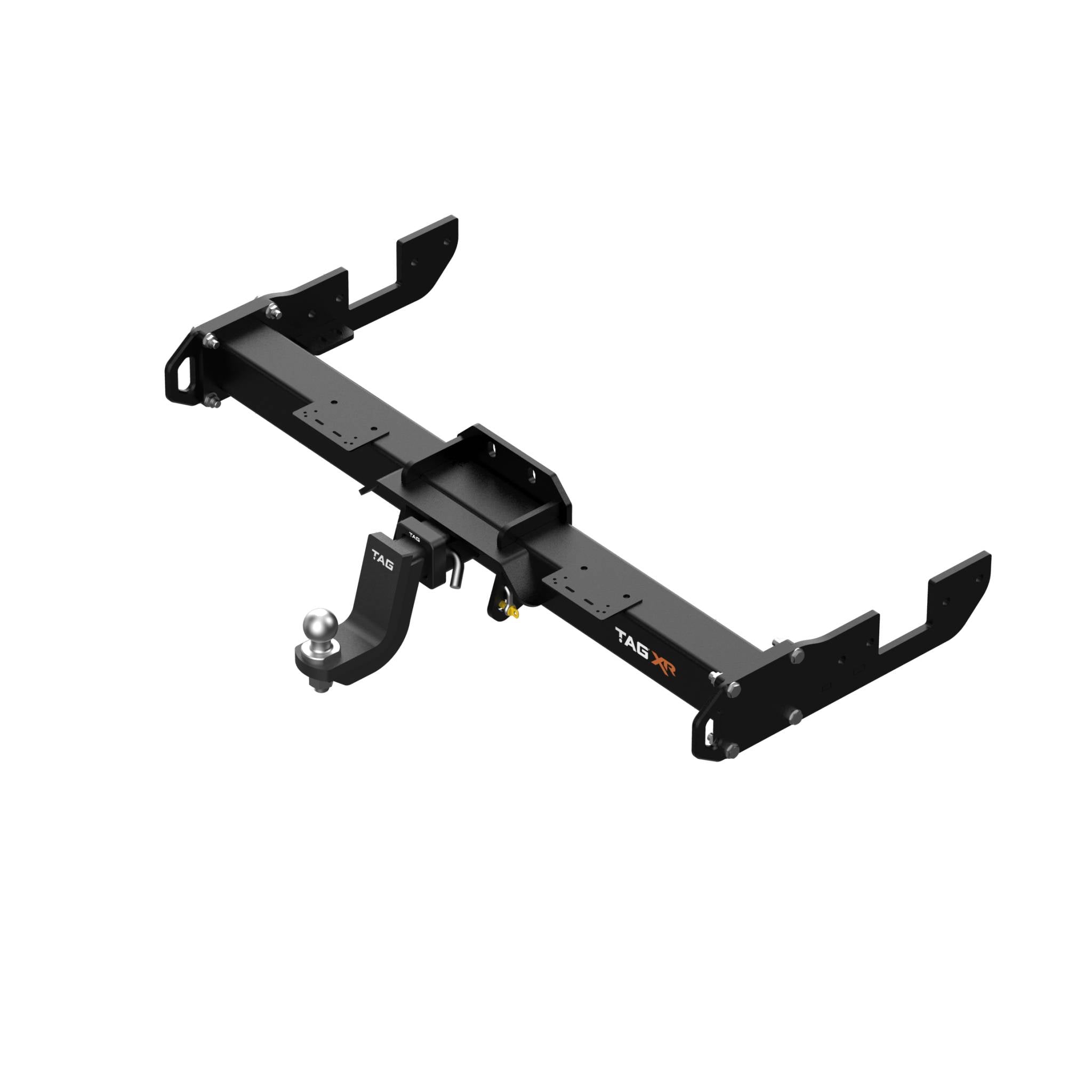

  • TAG 4x4 Recovery Towbar

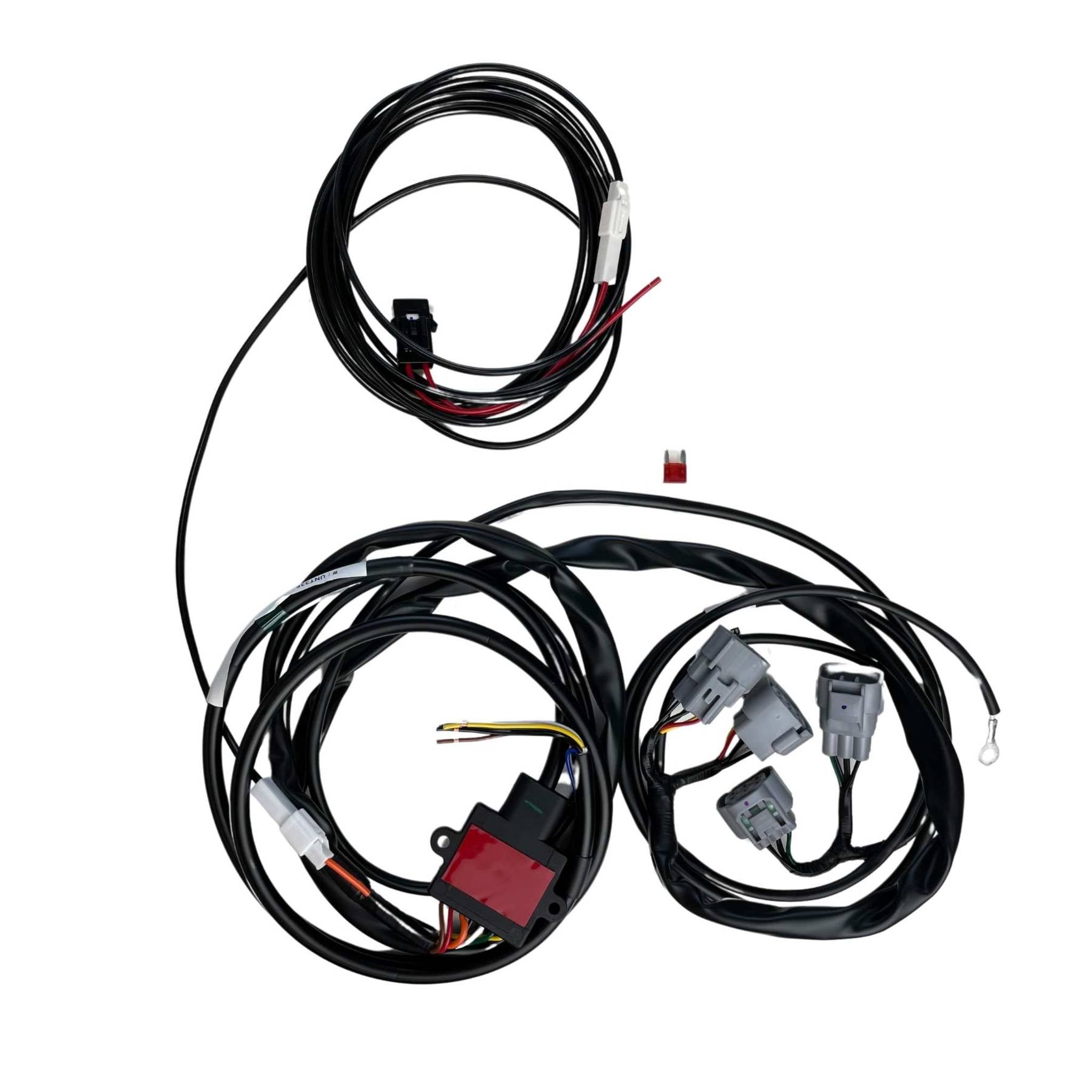

  • TAG Direct Fit Wiring Harness

  • TAG 7 Pin Flat Socket - Vehicle Side

Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.

Featuring:

  • 89mm x 89mm Extreme Duty Reinforced Crossbar

  • Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with bevelled edges to suit soft-shackles.

  • Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.

  • Highly durable, textured Extreme Duty Powder Coated Finish

  • Dual top-mounted Trailer & Anderson Plug Mounts

  • Class 4 Towbar - 50mm Square Hitch Receiver

  • TAG Limited Lifetime Warranty

  • Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles

Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications
  • Towbar Class: Heavy Duty (4x4 Recovery)
  • Towing Capacity [kg]: 3500
  • Ball Weight [kg]: 350
  • Recovery Load-tested: 4500KG WLL
  • Recovery Points: 2
  • Hitch Type: 50mm Square Hitch Receiver
  • Tow Ball Mount: L4171-PC
  • Coating: Powder Coated
  • Remove Bumper: No
  • Bumper Cut Out Required: No
  • Exposure: Exposed
  • Fitting Time Approx: 2 hr
  • Reverse Sensor Cut Off: Automatic
  • Diagnostic Coding: Not Applicable
  • Fog Cut Off: Automatic
  • Wiring Option: Direct Fit ECU
  • Style: 7 Pin Flat
  • Type: Plugs & Sockets
Toyota Hilux (07/2015 - on)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA HILUX 05/2020 - Cab Chassis GUN126 1GD-FTV | 2.8L | Diesel D AWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel D AWD
TOYOTA HILUX 07/2015 - Cab Chassis GUN112_, GUN122_, GUN135_ 2GD-FTV | 2.4L | Diesel D RWD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN126R 1GD-FTV | 2.8L | Diesel SR EXTRA CAB Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE Automatic/Manual 4WD
TOYOTA HILUX 10/2015 04/2020 Cab Chassis GUN125R 2GD-FTV | 2.4L | Diesel WORKMATE EXTRA CAB Automatic/Manual 4WD
