This Kit Includes:

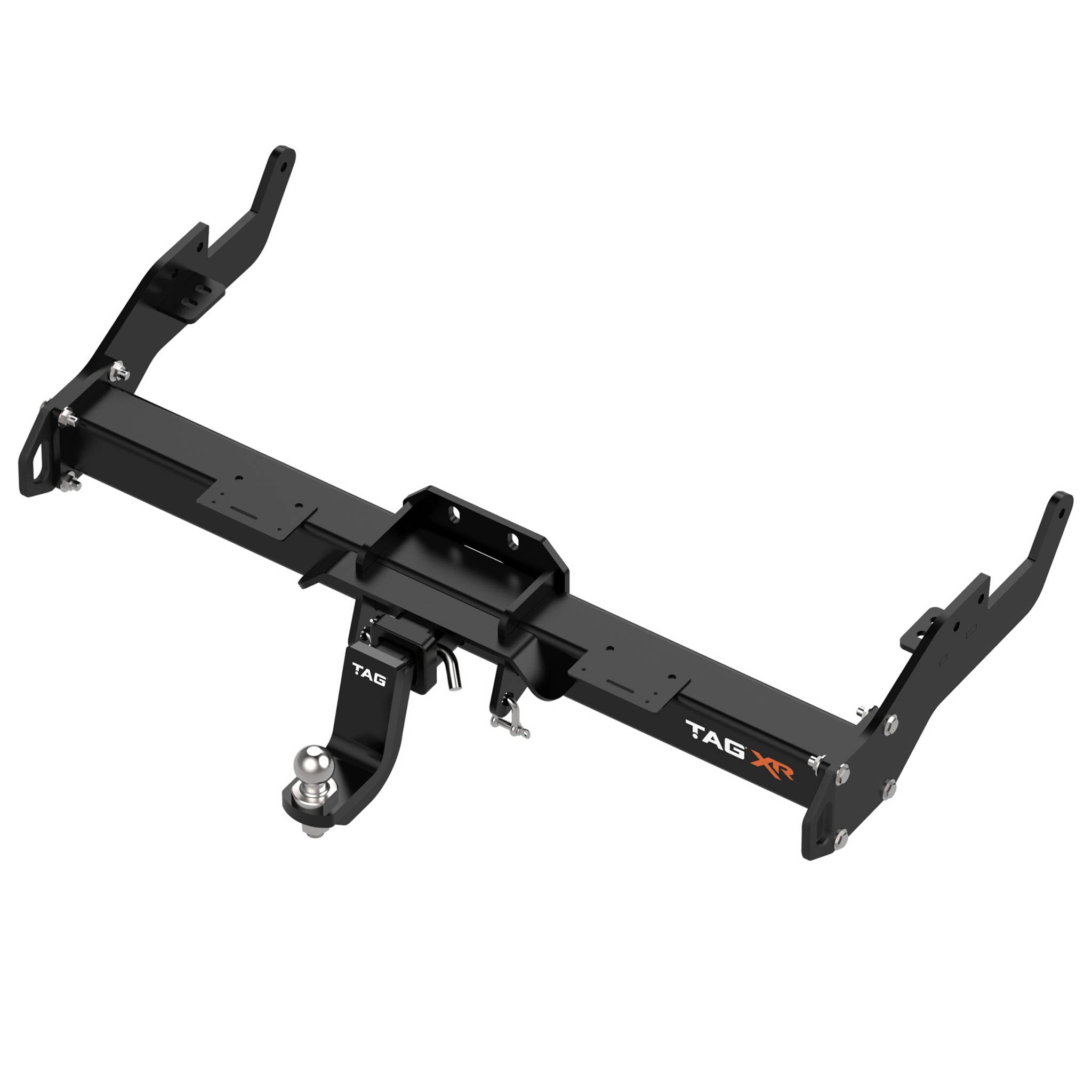

TAG 4x4 Recovery Towbar

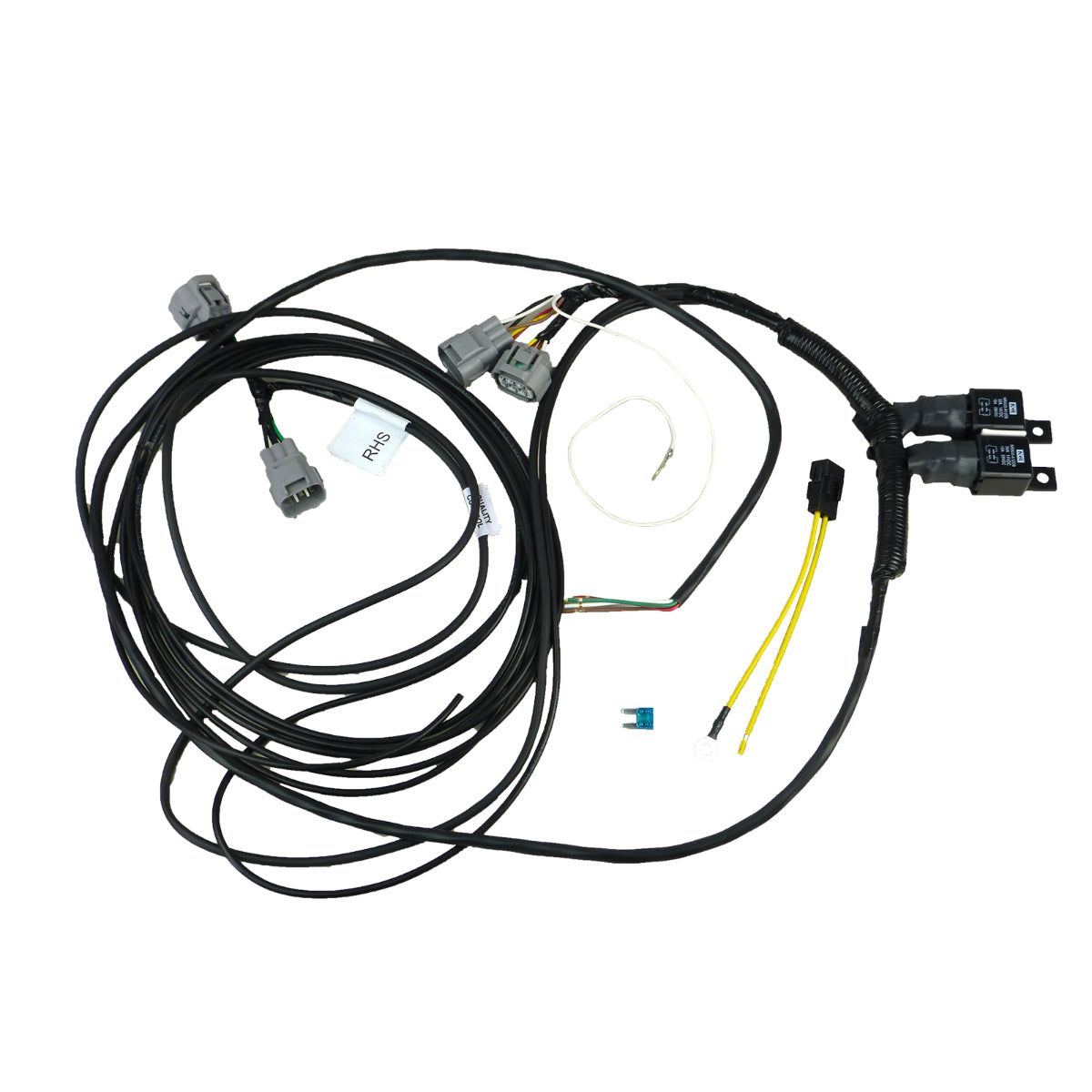

TAG Direct Fit Wiring Harness

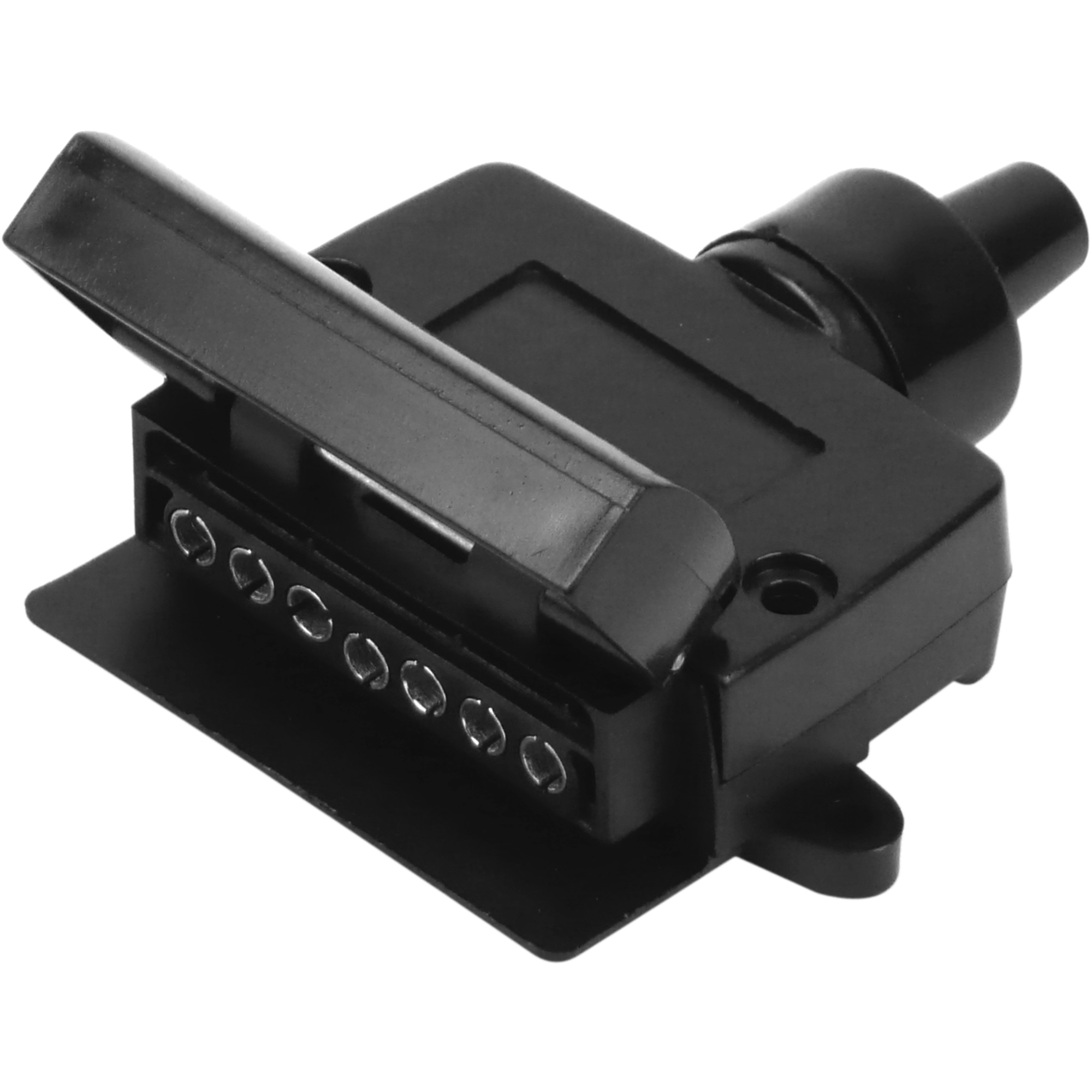

TAG 7 Pin Flat Socket - Vehicle Side
Built in Australia, the new TAG Extreme Recovery (XR) Towbar has been engineered for professional trade and fleet applications as well as adventurous offroaders alike, needing to get themselves and their convoy out of the most challenging recovery situations.
Featuring:
89mm x 89mm Extreme Duty Reinforced Crossbar
Two WLL 4500kg Load-Rated Recovery Points integrated into our 3-Piece Design side-arms with beveled edges to suit soft-shackles.
Flush chassis-mounted profile for maximum offroad clearance for improved departure angles.
Highly durable, textured Extreme Duty Powder Coated Finish
Dual top-mounted Trailer & Anderson Plug Mounts
Class 4 Towbar - 50mm Square Hitch Receiver
TAG Limited Lifetime Warranty
Includes Zinc Tow Ball & Extreme Duty Drop Hitch rated at 3500kg towing capacity / 350kg ball weight, Pin & Clip and D-Shackles
- Towbar Class: Heavy Duty (4x4 Recovery)
- Towing Capacity [kg]: 3500
- Ball Weight [kg]: 350
- Recovery Load-tested: 4500KG WLL
- Recovery Points: 2
- Hitch Type: 50mm Square Hitch Receiver
- Coating: Powder Coated
- Exposure: Exposed
- Fitting Time Approx: 2 hr
- Reverse Sensor Cut Off: Not Applicable
- Wiring Option: Direct Fit Harness with Relays
- Fits Vehicle Year To: 2015
- Fits Vehicle Year To (Month): 09
- Fits Vehicle Year From: 2008
- Fits Vehicle Year From (Month): 08
- Fog Cut Off: Not Applicable
- Diagnostic Coding: Not Required
- Style: 7 Pin Flat
- Type: Plugs & Sockets
Toyota Hilux (08/2008 - 09/2015)
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
TOYOTA | HILUX | 08/2008 | 06/2015 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | D | RWD |
TOYOTA | HILUX | 08/2008 | 06/2015 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | D | RWD |
TOYOTA | HILUX | 08/2008 | 09/2015 | Cab Chassis | KUN26 | 1KD-FTV | 3.0L | Diesel | D-4D | AWD |
TOYOTA | HILUX | 08/2008 | 09/2015 | Cab Chassis | KUN26R | 1KD-FTV | 3.0L | Diesel | SR, WORKMATE | Automatic/Manual 4WD |
TOYOTA | HILUX | 08/2008 | 09/2015 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | SR, WORKMATE | Manual RWD |
TOYOTA | HILUX | 08/2008 | 09/2015 | Ute | KUN26 | 1KD-FTV | 3.0L | Diesel | D-4D | 4WD |
TOYOTA | HILUX | 08/2008 | 09/2015 | Cab Chassis | TGN16R | 2TR-FE | 2.7L | Petrol | WORKMATE | Automatic/Manual RWD |
TOYOTA | HILUX | 08/2008 | 06/2015 | Cab Chassis | GGN25R | 1GR-FE | 4.0L | Petrol | AWD | |
TOYOTA | HILUX | 08/2008 | 06/2015 | Cab Chassis | GGN25R | 1GR-FE | 4.0L | Petrol | AWD | |
TOYOTA | HILUX | 08/2008 | 06/2015 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | RWD | |
TOYOTA | HILUX | 08/2008 | 06/2015 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | RWD | |
TOYOTA | HILUX | 08/2008 | 06/2013 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | SR | Automatic/Manual RWD |
TOYOTA | HILUX | 08/2008 | 08/2011 | Cab Chassis | GGN25R | 1GR-FE | 4.0L | Petrol | SR | Automatic/Manual 4WD |
TOYOTA | HILUX | 08/2008 | 08/2006 | Cab Chassis | KUN26R | 1KD-FTV | 3.0L | Diesel | SR | Automatic/Manual 4WD |
TOYOTA | HILUX | 08/2008 | 08/2006 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | SR | Manual RWD |
TOYOTA | HILUX | 08/2008 | 08/2006 | Ute | KUN26 | 1KD-FTV | 3.0L | Diesel | D-4D | AWD |
