Redback Extreme Duty Exhaust for Isuzu D-MAX (02/2017 - 10/2020)

$899.11
$899.11
Sold out

Tax included. Shipping calculated at checkout.
Suits 4WD Models fitted with DPF only.

Product Specifications:
  • 3" DPF Back Exhaust

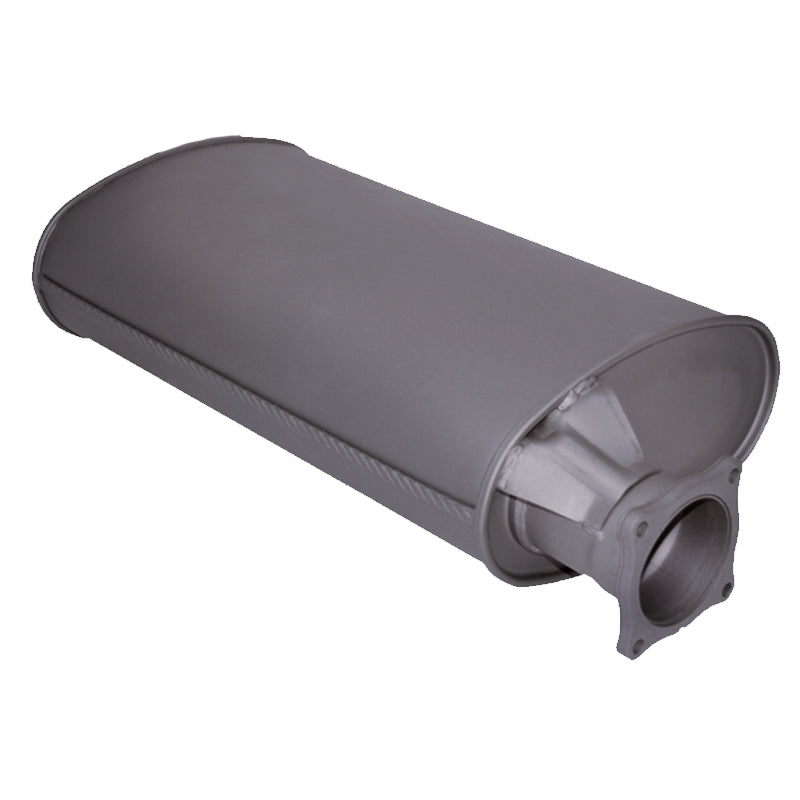

  • Available Sound Options include 11"x6" Large Straight Through Muffler, 5" Round Straight Through Resonator or Muffler Delete (Pipe Only)
Features and Benefits:
  • Australian Designed and Made
  • 10-Year Warranty
  • 409 Stainless Steel Tube
  • 4 Bolt, 10mm Thick Flange Plates
  • Extreme Duty Hanger Brackets
  • Removable Plug Boss for EGT (1/4" NPT)
  • Pressed Fire Ring Gaskets
  • Coated with Premium Heat Proof Paint
Aftermarket Accessories: No known fitment issues

Approximate Fitting Time: 1 Hour
Specifications
  • Fits Vehicle Year From (Month): 10
  • Fits Vehicle Year From: 2016
  • Muffler Option: No Muffler (pipe only)
  • Configuration: Offset/Centre
  • Coating: Premium Heat-Proof Paint
  • Material Type: Stainless Steel
  • Fitting Time Approx: 1 hr
  • Tube Size: 3"
  • System Layout: DPF Back System
  • Aftermarket Accessory Fitted: None
Isuzu D-MAX (06/2012 - 06/2020)
Make Model From To Body Series Engine Variant Drivetrain
ISUZU D-MAX 06/2012 05/2020 Ute TFR, TFS (TFS85J) 4JJ1-TC | 3.0L | Diesel CRDi AWD
ISUZU D-MAX 06/2012 06/2020 Ute TFS 4JJ1-TCX | 3.0L | Diesel EX, SX Automatic/Manual 4WD
ISUZU D-MAX 06/2012 06/2020 Ute TFS 4JJ1-TCX | 3.0L | Diesel LS-M, LS-M HI-RIDE, LS-T 01/19, LS-TERRAIN HI-RIDE, LS-U, LS-U HI-RIDE, SX, SX HI-RIDE, X-RIDER LIMITED EDTION, X-RUNNER Automatic/Manual 4WD
ISUZU D-MAX 06/2012 06/2020 Ute TFS 4JJ1-TCX | 3.0L | Diesel LS-U, LS-U HI-RIDE, SX SPACE CAB Automatic/Manual 4WD
Isuzu D-MAX (11/2015 - 06/2020)
Make Model From To Body Series Engine Variant Drivetrain
ISUZU D-MAX 11/2015 06/2020 Ute TFR 4JJ1-TCX | 3.0L | Diesel SX SPACE CAB Automatic/Manual RWD

Download Instructions for (IDX12800-PO) Download Instructions for (IDX12800-PR) Download Instructions for (IDX12800-PM)
