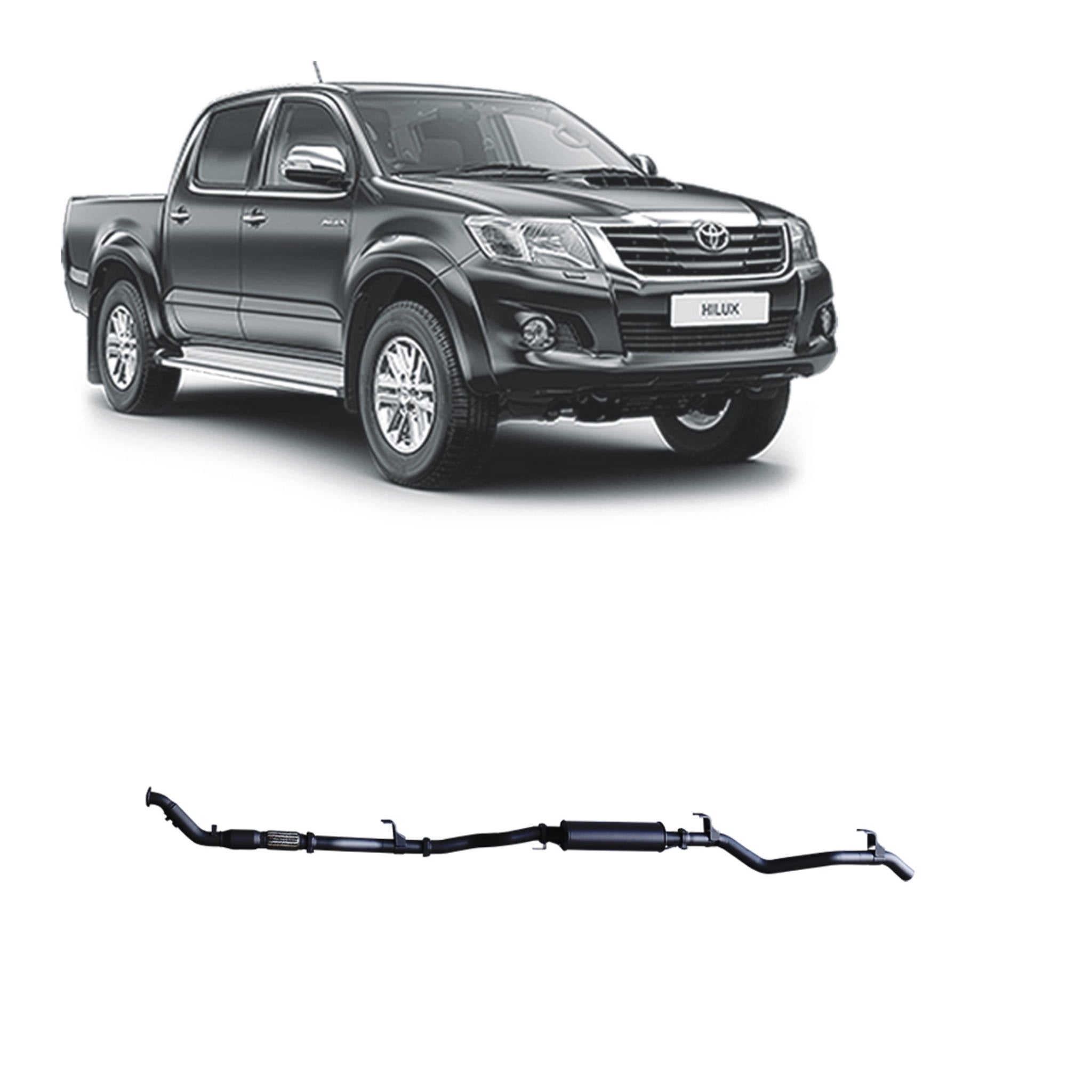

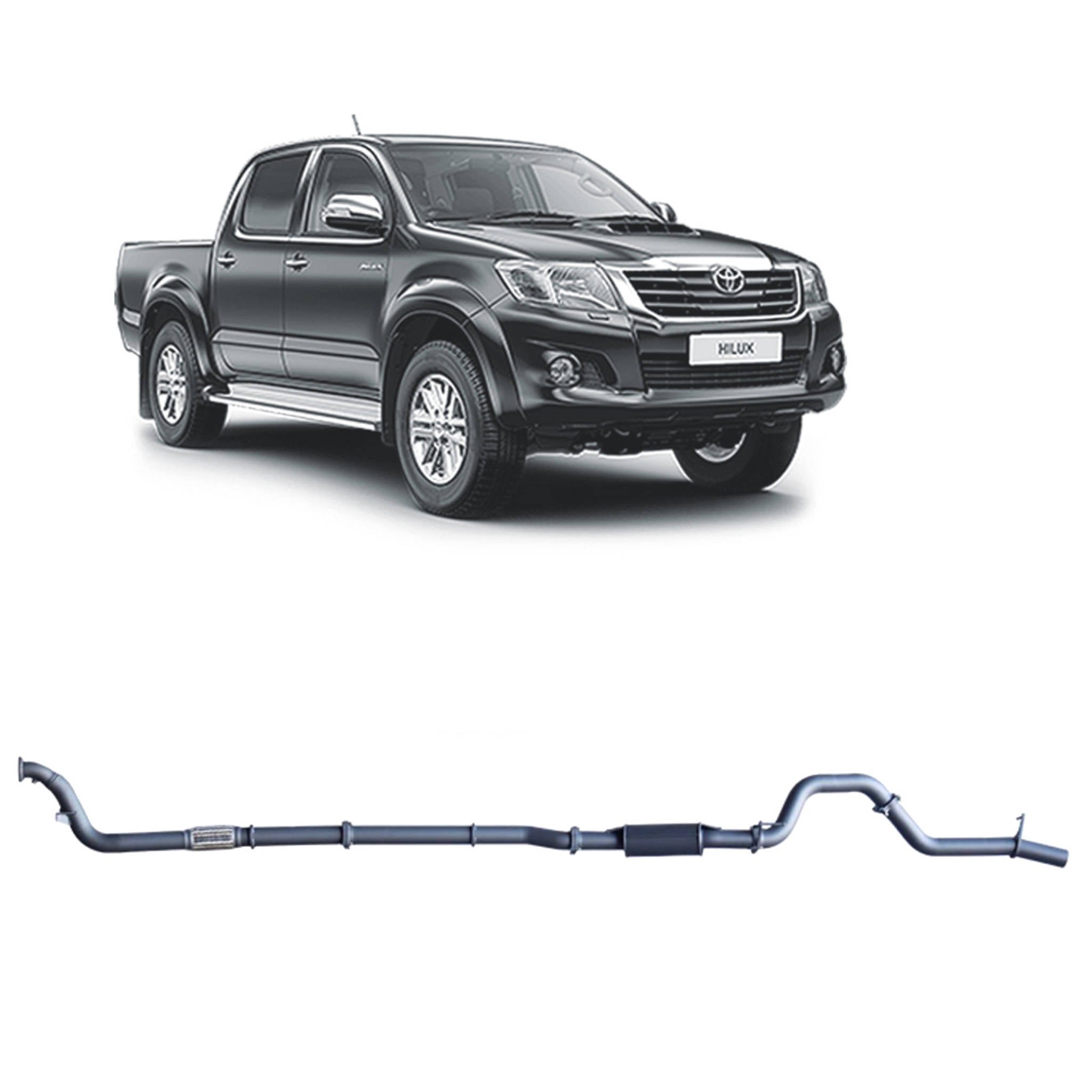

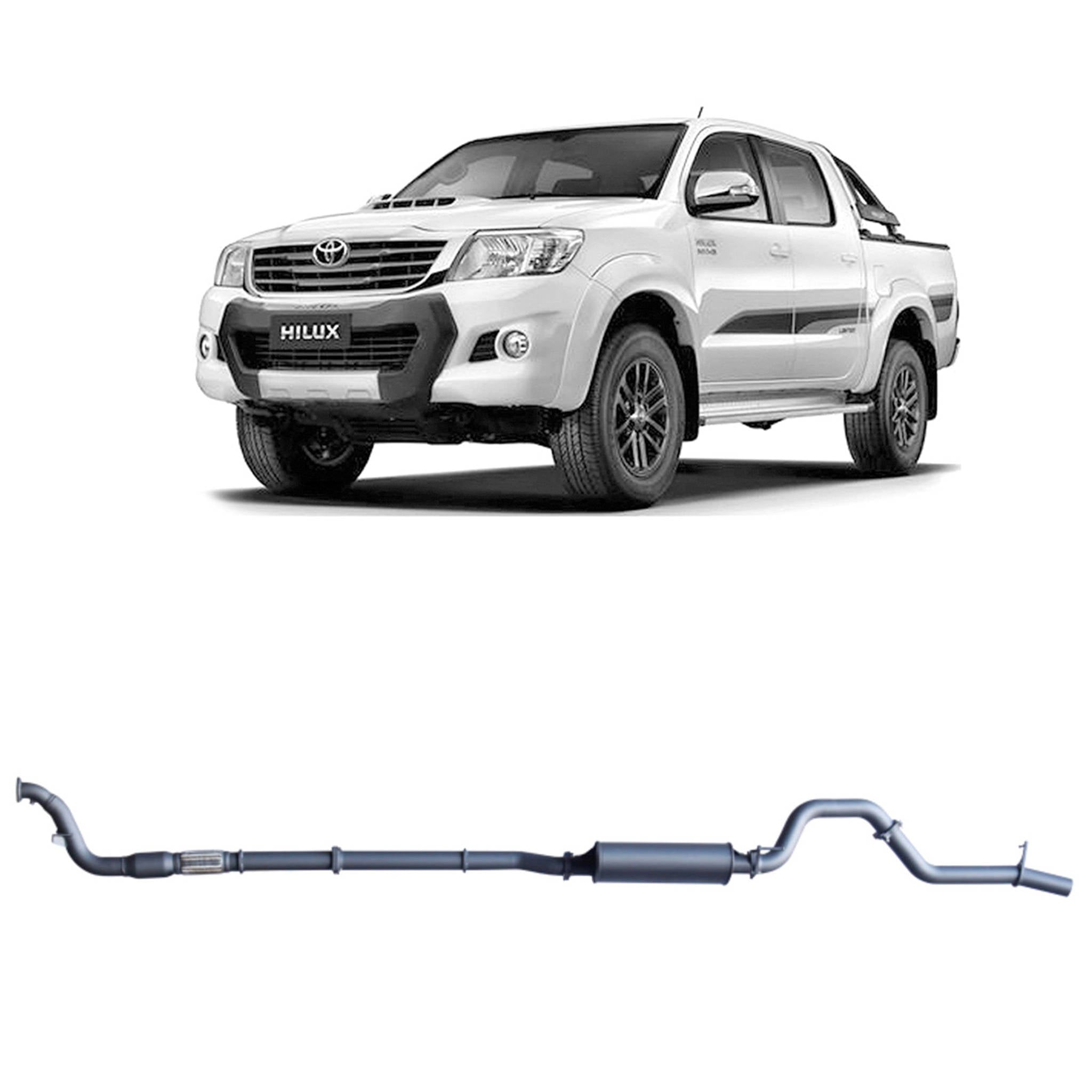

Redback Extreme Duty Exhaust for Toyota Hilux 3.0L D4D (02/2005 - 10/2015)

$1,309.57
$1,309.57
Sold out

Tax included. Shipping calculated at checkout.

Suits Single Cab/Space Cab and Dual Cab Vehicles with 1KD-FTV engine only.

3" Hilux Exhaust

Product Specifications:

  • 3" Turbo Back Exhaust

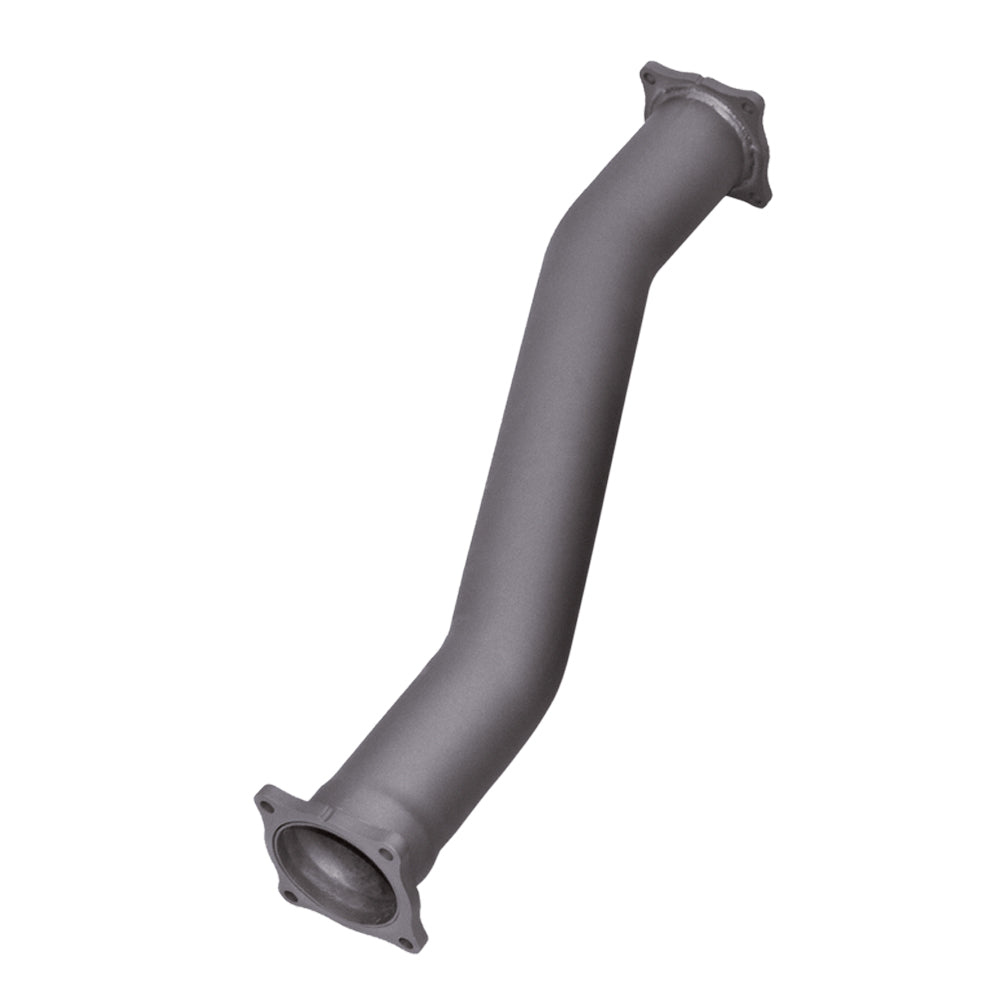

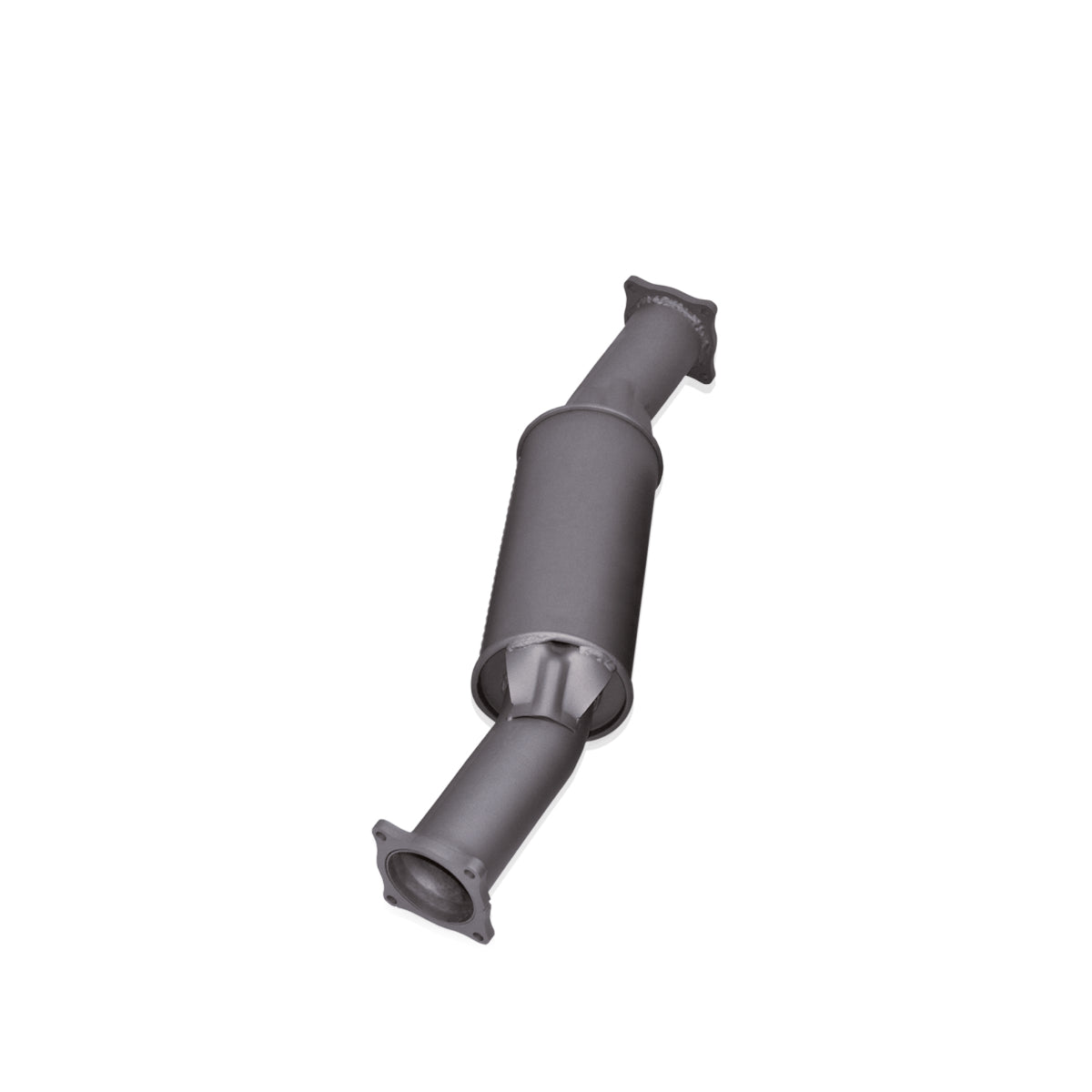

  • Available Engine Pipe Options include with 200 Cell High Flow Diesel Spec Catalytic Converter or Without Catalytic Converter

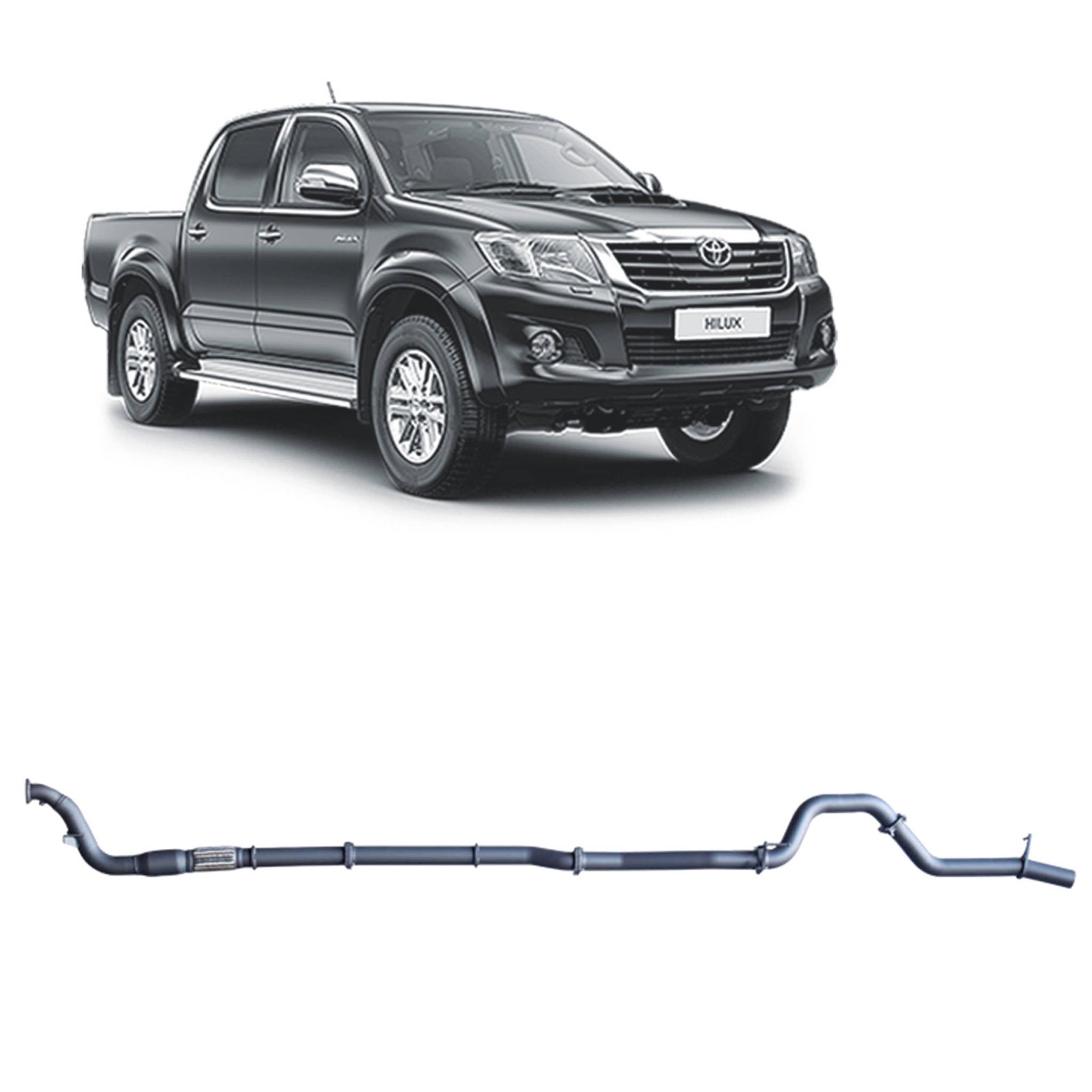

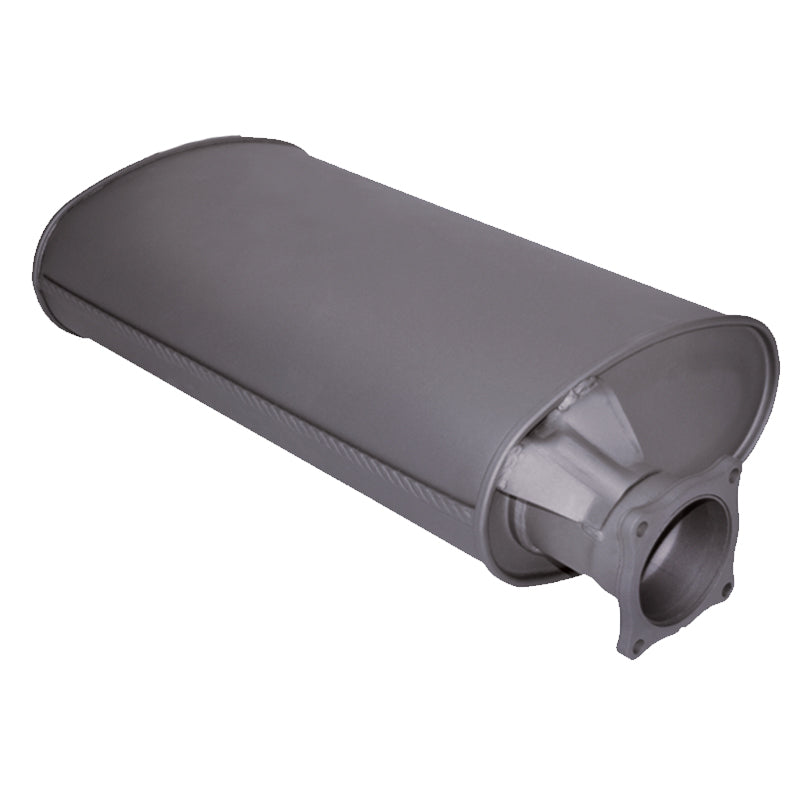

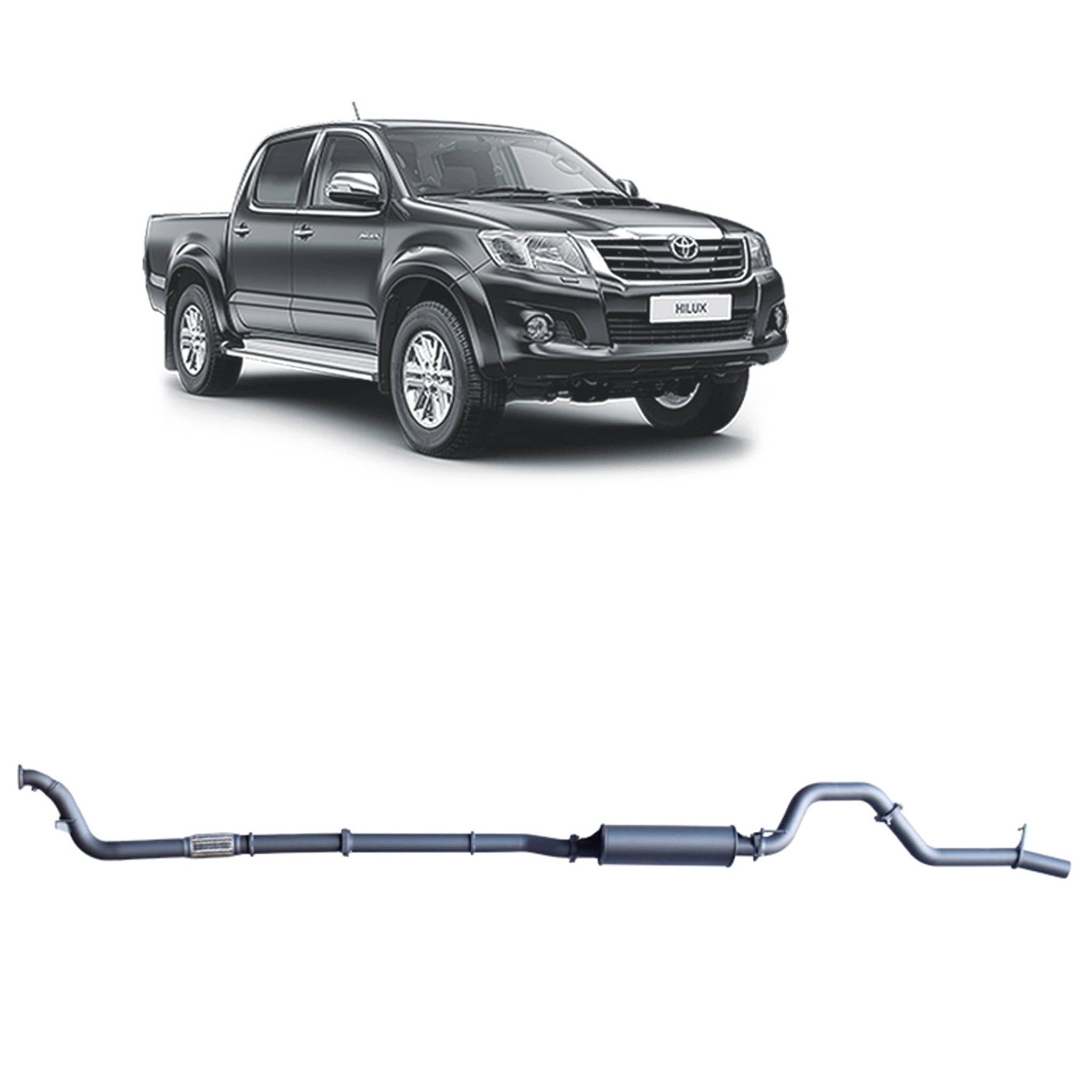

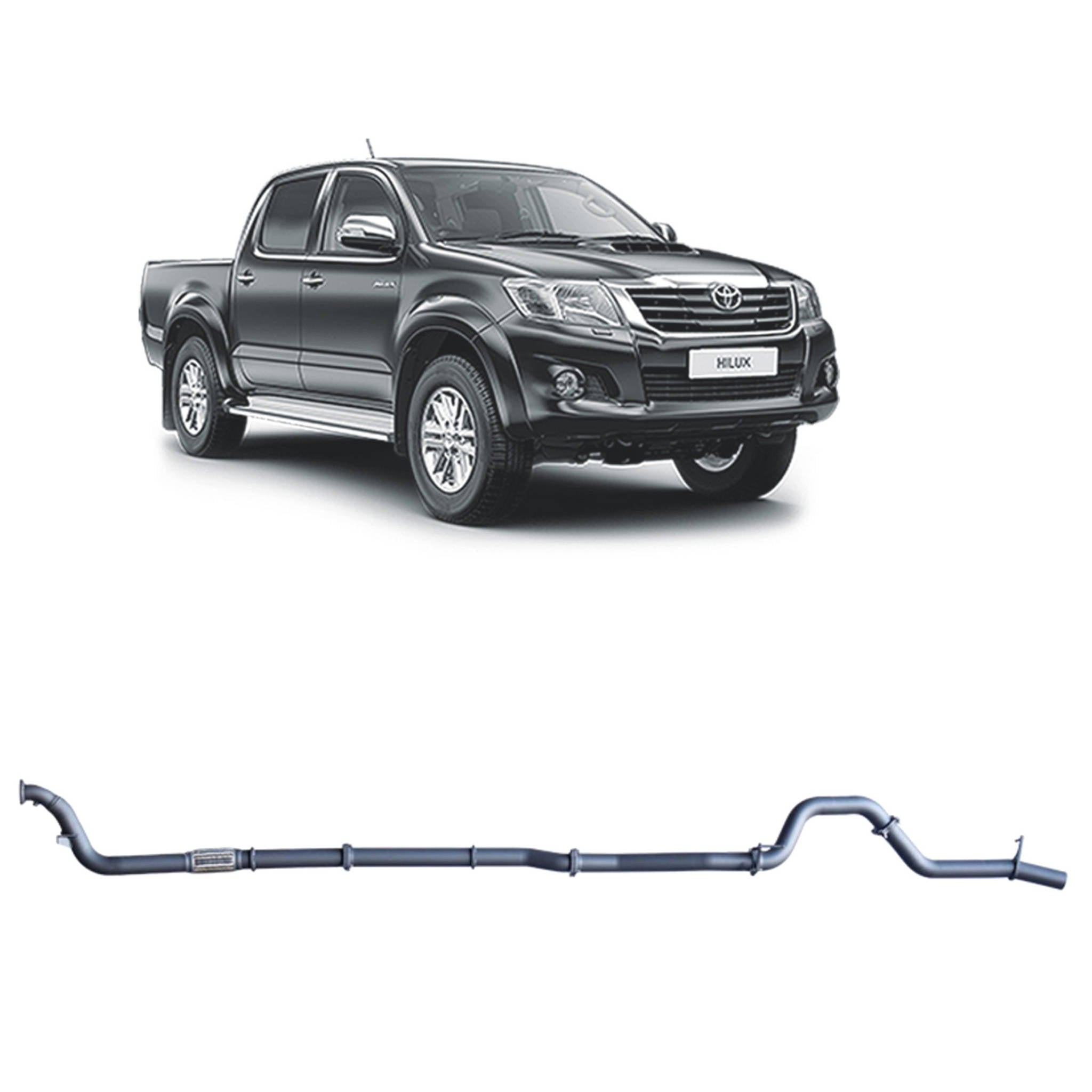

  • Available Sound Options include 11"x6" Large Straight Through Muffler, 5" Round Straight Through Resonator or Muffler Delete (Pipe Only)

Features and Benefits:

  • Australian Designed and Made

  • 10-Year Warranty

  • 409 Stainless Steel Tube

  • 4 Bolt, 10mm Thick Flange Plates

  • Extreme Duty Hanger Brackets

  • Removable Plug Boss for EGT (1/4" NPT)

  • Pressed Fire Ring Gaskets

  • Coated with Premium Heat Proof Paint

Aftermarket Accessories: No known fitment issues

Approximate Fitting Time: 2.5 Hours

Specifications
  • Tube Size: 076mm (3")
  • Coating: Premium Heat-Proof Paint
  • Aftermarket Accessory Fitted: None
  • Muffler Option: Resonator (Medium)
  • Cat Option: With Cat
  • System Layout: Turbo Back System
  • Transmission: Fits Both
  • Fitting Time [min.]: 150
  • Configuration: Offset/Centre
Toyota Hilux (01/2005 - 09/2015)
Make Model From To Body Series Engine Variant Drivetrain
TOYOTA HILUX 01/2008 01/2015 Ute KUN16R 1KD-FTV | 3.0L | Diesel SR X-CAB Manual RWD
TOYOTA HILUX 08/2006 09/2015 Cab Chassis KUN26 1KD-FTV | 3.0L | Diesel D-4D AWD
TOYOTA HILUX 08/2006 06/2015 Cab Chassis KUN16R 1KD-FTV | 3.0L | Diesel D-4D RWD
TOYOTA HILUX 08/2006 09/2015 Cab Chassis KUN26R 1KD-FTV | 3.0L | Diesel SR, WORKMATE Automatic/Manual 4WD
TOYOTA HILUX 08/2006 09/2015 Cab Chassis KUN16R 1KD-FTV | 3.0L | Diesel SR, WORKMATE Manual RWD
TOYOTA HILUX 08/2006 09/2015 Ute KUN26 1KD-FTV | 3.0L | Diesel D-4D 4WD
TOYOTA HILUX 08/2006 05/2015 Ute KUN16 1KD-FTV | 3.0L | Diesel D-4D RWD
TOYOTA HILUX 08/2006 09/2015 Ute KUN16R 1KD-FTV | 3.0L | Diesel SR Manual RWD
TOYOTA HILUX 08/2006 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR5 EXTRA CAB Manual 4WD
TOYOTA HILUX 08/2006 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR5, SR5 BLACK Automatic/Manual 4WD
TOYOTA HILUX 08/2006 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR EXTRA CAB Manual 4WD
TOYOTA HILUX 08/2006 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR, WORKMATE Automatic/Manual 4WD
TOYOTA HILUX 03/2005 09/2015 Ute KUN26R 1KD-FTV | 3.0L | Diesel SR5 4WD
TOYOTA HILUX 01/2005 01/2015 Cab Chassis KUN26R 1KD-FTV | 3.0L | Diesel SR Automatic/Manual 4WD
TOYOTA HILUX 08/2005 08/2006 Ute KUN16 1KD-FTV | 3.0L | Diesel D-4D RWD
TOYOTA HILUX 03/2005 08/2006 Ute KUN26 1KD-FTV | 3.0L | Diesel D-4D AWD

Download Instructions for (THX42200-CR) Download Instructions for (THX42200-CP) Download Instructions for (THX42200-CM) Download Instructions for (THX42200-PO) Download Instructions for (THX42200-PM) Download Instructions for (THX42200-PR)
